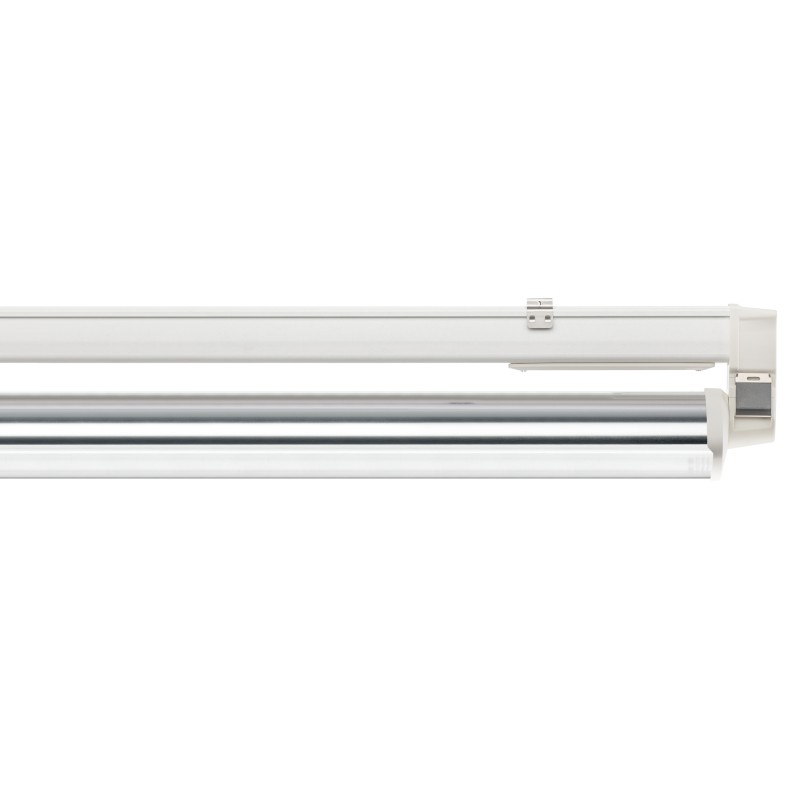

9301217d APOLLO G2 DALI 0709mm PM 1x29W 030° 4200lm
APOLLO G2 DALI 0709mm PM 1x29W 030° 4200lm, 4000K, class I, without TW. The plastic parts of this luminaire are made from 35% recycled material. New generation of APOLLO moisture-proof reflector luminaire. Pivoting reflectors. Acid and alkali resistant. IP65 protection class. Ideal for industry and logistics. 5-year guarantee.
- flexibly configurable free-standing spotlight
- pivoting light
- single or double-flame reflectors
- largely resistant to acids and alkalis thanks to (PRACHT-OPAL)
- LED and converter thermally separated
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
technical data
| Beam angle | 30 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 9301217dNZ |
| REACH | Nein |
| market indicator | CE |
| length | 709 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| through-wiring | without |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 709 x 105 x 152 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -25 … +45 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Lichtstrom | 4200 lm |
| Leistung | 29 W |
| light output | 145 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 26.6 / 15.1 |
| Lifetime L70B50 (@Ta 25°C) | 165280 h |
| Service life L80B50 (@Ta 25°C) | 104423 h |
| Lifetime L90B50 (@Ta 25°C) | 50744 h |
| Lifetime L70B10 (@Ta 25°C) | 132006 h |
| Lifetime L80B10 (@Ta 25°C) | 83788 h |
| Lifetime L90B10 (@Ta 25°C) | 41107 h |
| Lifetime L70B50 (@Ta max) | 160385 h |
| Lifetime L80B50 (@Ta max) | 101431 h |
| Lifetime L90B50 (@Ta max) | 49430 h |
| Circuit breaker B16A | 22 Leuchten |
| Circuit breaker C16A | 36 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 35 % |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | C |
Tender text
Food-certified Reflector luminaire APOLLO G2 DALI 0709mm PM 1x29W 030° 4200lm 4000K, class I, without TW. The plastic parts of this luminaire are made from 35% recycled material. New generation of APOLLO moisture-proof reflector luminaire. Pivoting reflectors. Acid and alkali resistant. IP65 protection class. Ideal for industry and logistics. 5-year guarantee. Item number: 9301217d GTIN: 4018098386421 Technical details/specification: Cover made of PM - Polymethylmethacrylat; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 709mm x 105mm x 152mm; Diameter: mm
