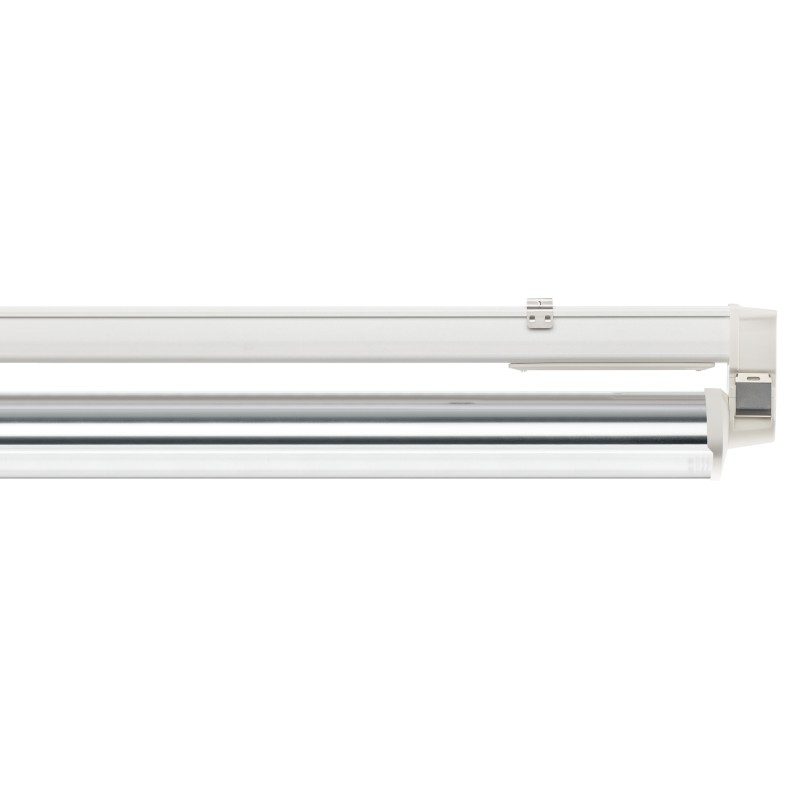

9400260d APOLLO G2 INDUSTRY DALI 1560mm PM 1x86W 030° 12500lm
APOLLO G2 INDUSTRY DALI 1560mm PM 1x86W 030° 12500lm, 4000K, class I, without TW. The plastic parts of this luminaire are made from 17% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications.
- Flexibly configurable DALI damp proof luminaire with rotatabale reflectors
- Single or double reflectors
- largely acid & alkali-resistant due to (PRACHT-OPAL)
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
- Built-in industrial components for higher transient resistance 4kV and longer service life due to temperature resistance (-45 to +65 degrees)
technical data
| Dimensions (L x W x H) | 1560 x 105 x 152 mm |
|---|---|
| Luminous flux | 12500 lm |
| Performance | 86 W |
| Luminous efficacy | 145 lm/W |
| Color temperature | 4000 K |
| Beam angle | 30 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1560 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 27.0 / 15.5 |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Protection class | SK I |
| Temperature range | -45 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 156648 h |
| Lifetime L80B50 (@Ta 25°C) | 98638 h |
| Lifetime L90B50 (@Ta 25°C) | 47471 h |
| Lifetime L70B10 (@Ta 25°C) | 124914 h |
| Lifetime L80B10 (@Ta 25°C) | 79103 h |
| Lifetime L90B10 (@Ta 25°C) | 38567 h |
| Lifetime L70B50 (@Ta max) | 128903 h |
| Lifetime L80B50 (@Ta max) | 81418 h |
| Lifetime L90B50 (@Ta max) | 39534 h |
| Line protection B16A | 24 luminaires |
| Line protection C16A | 40 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9400260dNZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| REMADE Score | 17 % |
| Ambient temperature (min) | -45 °C |
| Ambient temperature (max) | 50 °C |
| Certification mark | ENEC HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Durable Reflector luminaire APOLLO G2 INDUSTRY DALI 1560mm PM 1x86W 030° 12500lm 4000K, class I, without TW. The plastic parts of this luminaire are made from 17% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications. Item number: 9400260d GTIN: 4018098427414 Technical details/specification: Cover made of PM - Polymethylmethacrylat; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1560mm x 105mm x 152mm; Diameter: mm
