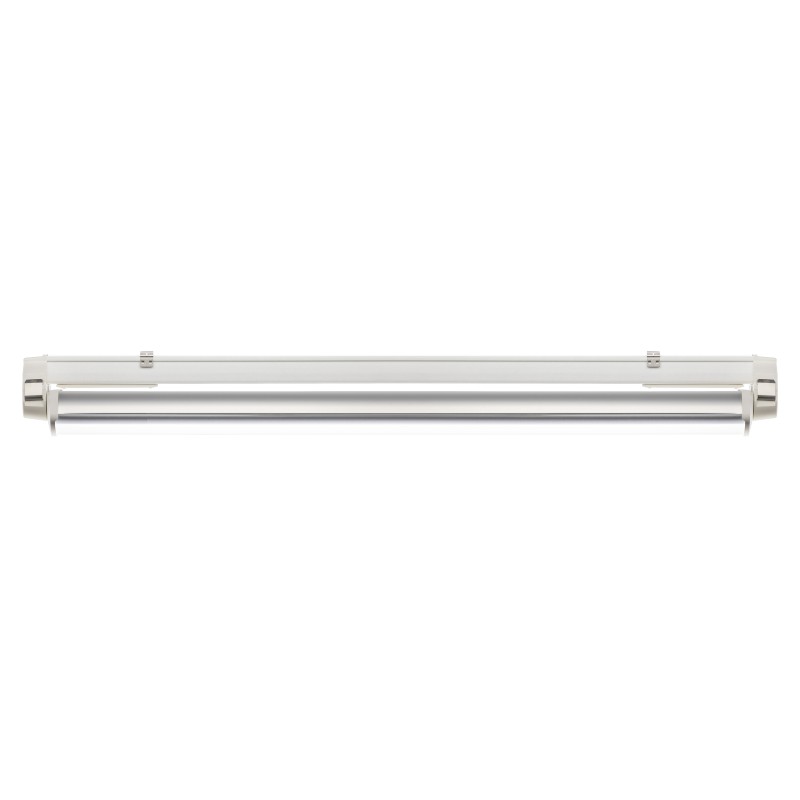

9405004n APOLLO REMADE 1260mm PO 2x32W 060° 11600lm
APOLLO REMADE 1260mm PO 2x32W 060° 11600lm, 4000K, class I, without TW. The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time.

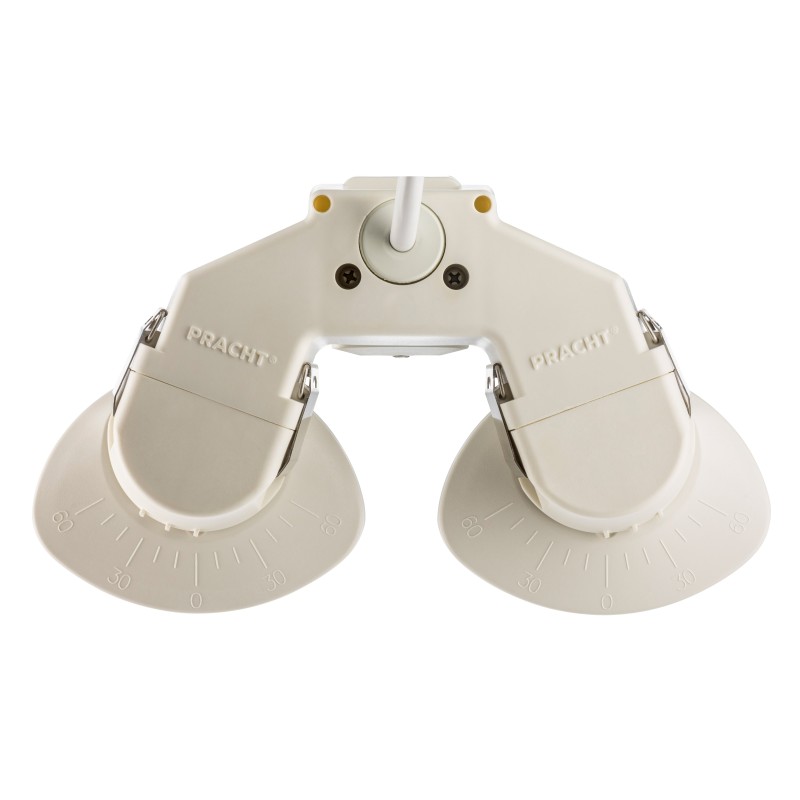

- Flexibly configurable free-standing spotlight with swivelling lightt
- single or twin-lamp reflectorst
- REMADE made from recycled materialst
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECTt
- Recyclable
technical data
| Ausstrahlwinkel | 60 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1260 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK06 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | without |
| Outdoor area | Indoor area |
| Protection class | class I |
| Abmessungen (L x B x H) | 1260 x 232 x 142 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -25 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -25 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 11600 lm |
| Leistung | 64 W |
| Lichtausbeute | 181 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 24.3 / 18.8 |
| Lebensdauer L70B50 (@Ta 25°C) | 165280 h |
| Lebensdauer L80B50 (@Ta 25°C) | 104423 h |
| Lebensdauer L90B50 (@Ta 25°C) | 50744 h |
| Lebensdauer L70B10 (@Ta 25°C) | 132006 h |
| Lebensdauer L80B10 (@Ta 25°C) | 83788 h |
| Lebensdauer L90B10 (@Ta 25°C) | 41107 h |
| Lebensdauer L70B50 (@Ta max) | 160385 h |
| Lebensdauer L80B50 (@Ta max) | 101431 h |
| Lebensdauer L90B50 (@Ta max) | 49430 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| REMADE Score | 97 % |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 10 |
| Leitungsschutz C16A | 16 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Sustainable Reflector luminaire APOLLO REMADE 1260mm PO 2x32W 060° 11600lm 4000K, class I, without TW. The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time. Item number: 9405004n GTIN: 4018098442271 Technical details/specification: Cover made of POr - PRACHTOPAL recyclate; Housing made of PC-PBT Recyclate white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1260mm x 232mm x 142mm; Diameter: mm
