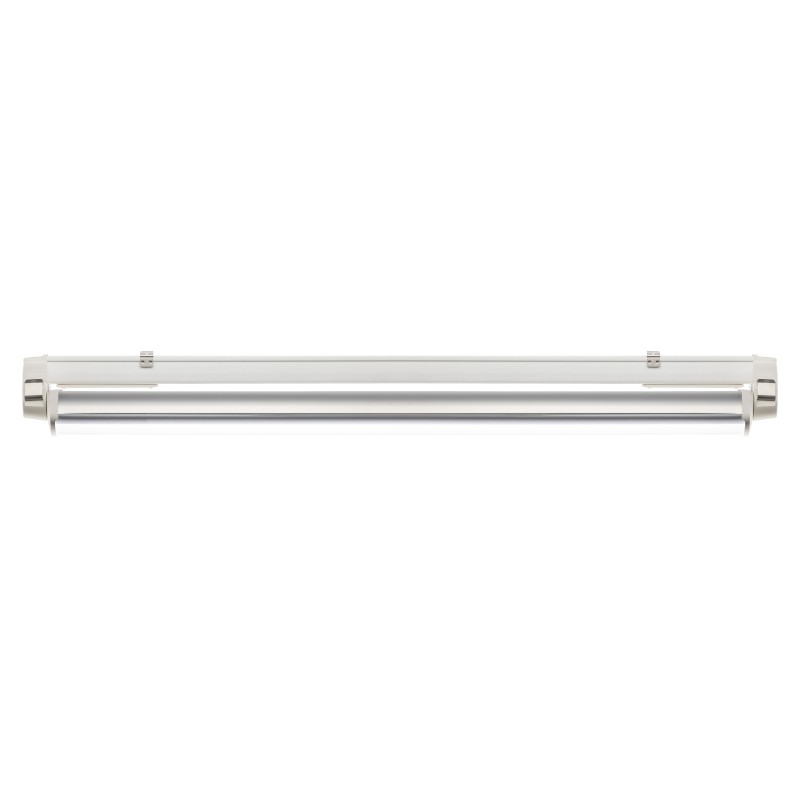

9406000o APOLLO ONE DALI 1560mm PO 2x42W 090° 14000lm
APOLLO ONE DALI 1560mm PO 2x42W 090° 14000lm, 4000K, class I, without TW. The new APOLLO industrial reflector luminaire offers ideal value for money: IP65 protection, made from 98% recycled material, swivel reflectors, efficient LED technology and easy installation – sustainable, powerful and attractively priced. • Flexibly configurable floodlight with swiveling light • Ideal price-performance ratio • Single-flame or double-flame reflectors • REMADE – made from 98% recycled materials • Compatible with mounting rail systems for quick installation with PRACHT EASY CONNECT • Recyclable
technical data
| Ausstrahlwinkel | 90 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1560 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1560 x 232 x 142 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -20 … +45 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | with limitation |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 14000 lm |
| Leistung | 83 W |
| Lichtausbeute | 169 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 26.2 / 25.6 |
| Lebensdauer L70B50 (@Ta 25°C) | 165280 h |
| Lebensdauer L80B50 (@Ta 25°C) | 104423 h |
| Lebensdauer L90B50 (@Ta 25°C) | 50744 h |
| Lebensdauer L70B10 (@Ta 25°C) | 132006 h |
| Lebensdauer L80B10 (@Ta 25°C) | 83788 h |
| Lebensdauer L90B10 (@Ta 25°C) | 41107 h |
| Lebensdauer L70B50 (@Ta max) | 156648 h |
| Lebensdauer L80B50 (@Ta max) | 98638 h |
| Lebensdauer L90B50 (@Ta max) | 47471 h |
| Stoßspannungsfestigkeit L/N-PE | 4.0 kV |
| REMADE Score | 98 % |
| Zertifizierungszeichen | HACCP IFS |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 24 |
| Leitungsschutz C16A | 40 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Favorable Reflector luminaire APOLLO ONE DALI 1560mm PO 2x42W 090° 14000lm 4000K, class I, without TW. The new APOLLO industrial reflector luminaire offers ideal value for money: IP65 protection, made from 98% recycled material, swivel reflectors, efficient LED technology and easy installation – sustainable, powerful and attractively priced. Item number: 9406000o GTIN: 4018098458012 Technical details/specification: Cover made of PMS - PRACHTOPAL MS; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1560mm x 232mm x 142mm; Diameter: mm
