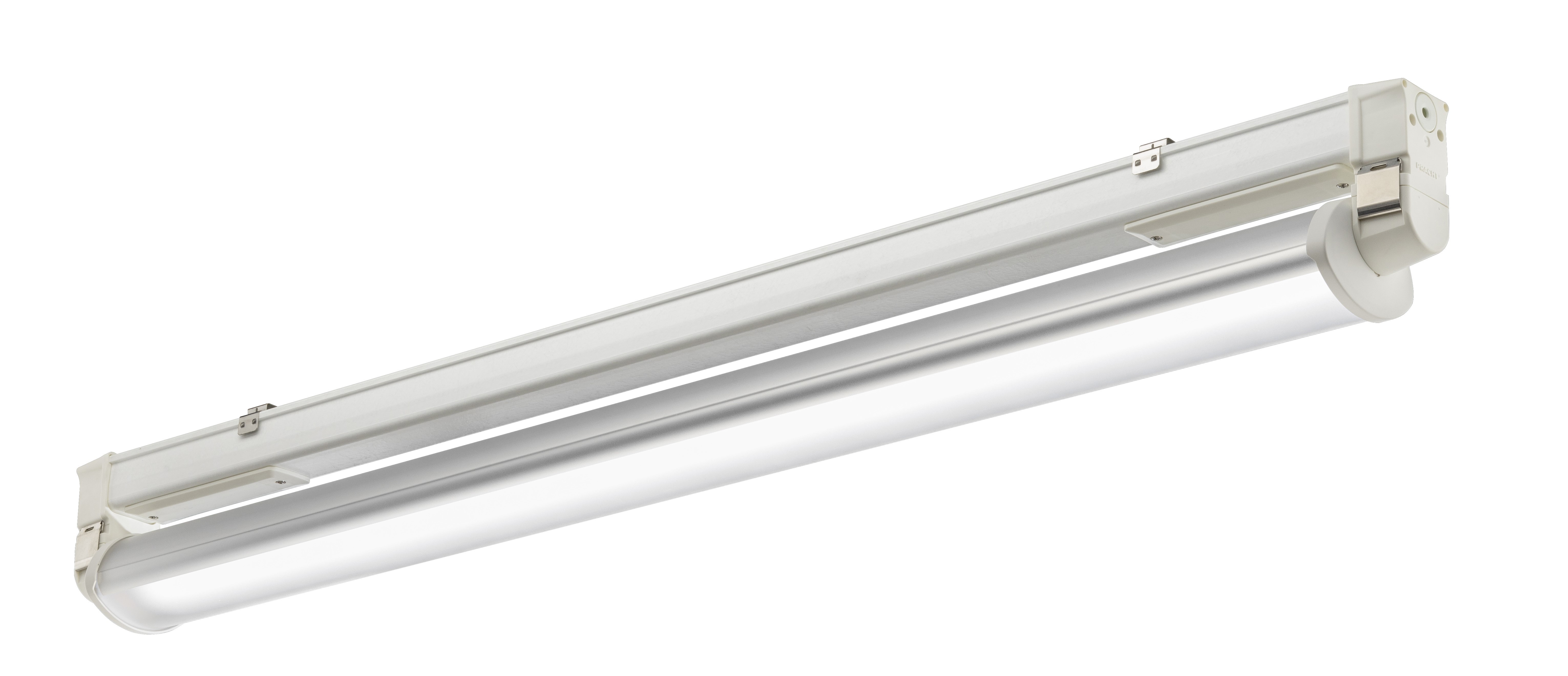

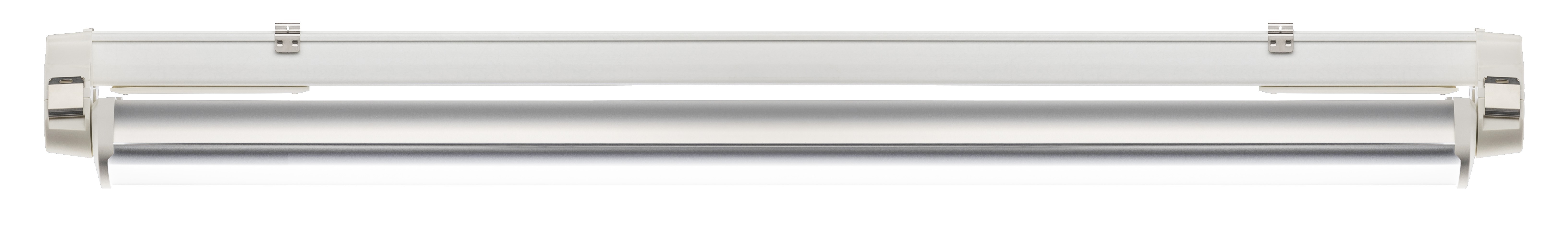

9480065w APOLLO G2 1560mm PO 1x86W 090° 12500lm
APOLLO G2 1560mm PO 1x86W 090° 12500lm, 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 17% recycled material. New generation of the APOLLO damp-proof reflector luminaire. Swiveling reflectors. Acid and alkali resistant. IP65 protection class. Ideal for industry and logistics. 5-year warranty.
- Flexibly configurable damp proof luminaire with rotatable reflector
- Single or double reflector
- largely acid and alkali resistant due to (PRACHT-OPAL)
- compatible with support trunking systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
technical data
| Dimensions (L x W x H) | 1560 x 105 x 152 mm |
|---|---|
| Luminous flux | 12500 lm |
| Performance | 86 W |
| Luminous efficacy | 145 lm/W |
| Color temperature | 4000 K |
| Beam angle | 90 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2,5 |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | with restriction |
| Multi-Lumen | No |
| Length | 1560 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 25.9 / 23.1 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +40 °C |
| Lifetime L70B50 (@Ta 25°C) | 156648 h |
| Lifetime L80B50 (@Ta 25°C) | 98638 h |
| Lifetime L90B50 (@Ta 25°C) | 47471 h |
| Lifetime L70B10 (@Ta 25°C) | 124914 h |
| Lifetime L80B10 (@Ta 25°C) | 79103 h |
| Lifetime L90B10 (@Ta 25°C) | 38567 h |
| Lifetime L70B50 (@Ta max) | 139202 h |
| Lifetime L80B50 (@Ta max) | 87901 h |
| Lifetime L90B50 (@Ta max) | 42650 h |
| Line protection B16A | 10 luminaires |
| Line protection C16A | 16 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9480065wNZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| REMADE Score | 17 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 40 °C |
| Certification mark | ENEC HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Food-certified Reflector luminaire APOLLO G2 1560mm PO 1x86W 090° 12500lm 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 17% recycled material. New generation of the APOLLO damp-proof reflector luminaire. Swiveling reflectors. Acid and alkali resistant. IP65 protection class. Ideal for industry and logistics. 5-year warranty. Item number: 9480065w GTIN: 4018098421023 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1560mm x 105mm x 152mm; Diameter: mm
