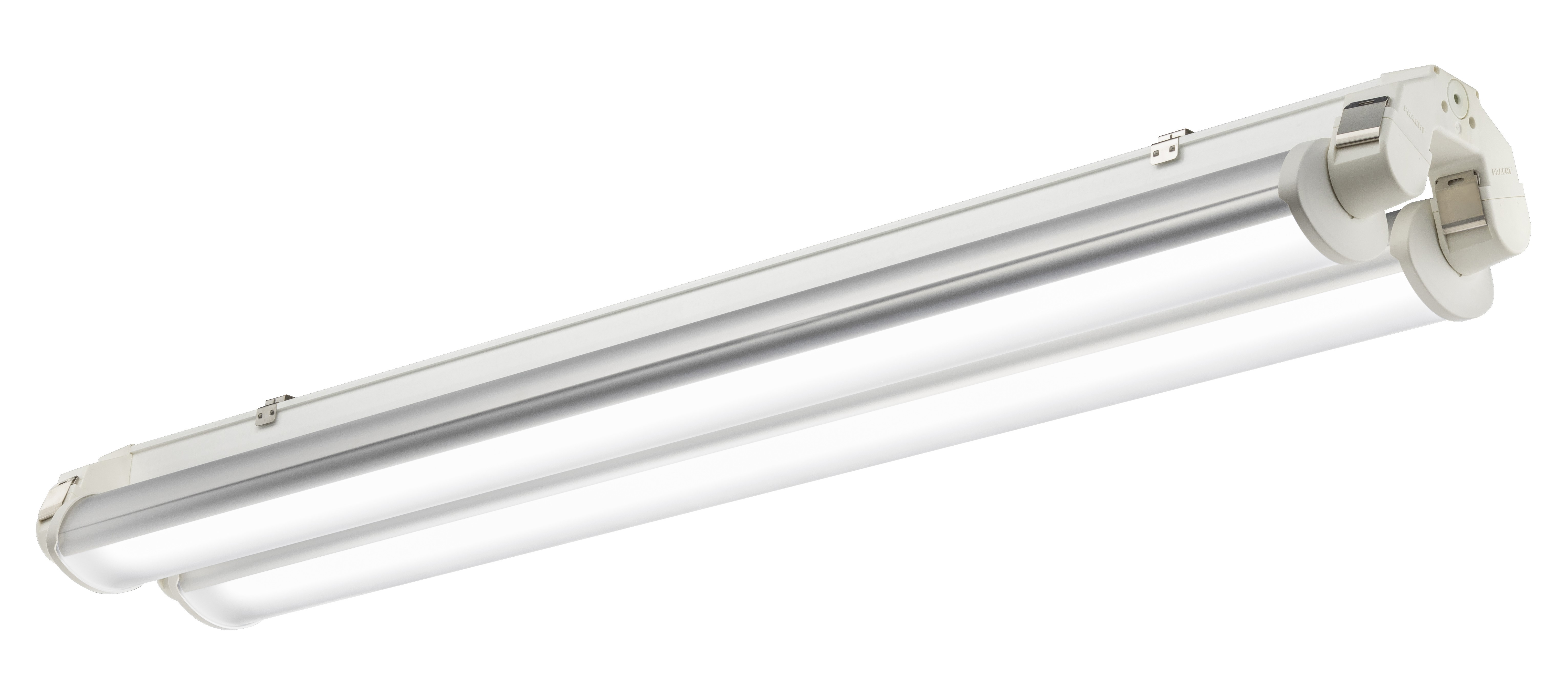

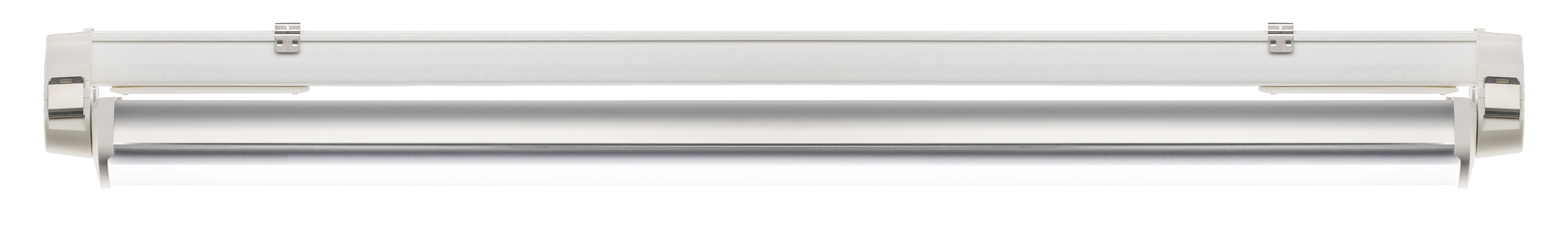

9480295n APOLLO G2 INDUSTRY 1560mm PO 2x35W 060° 12000lm
APOLLO G2 INDUSTRY 1560mm PO 2x35W 060° 12000lm, 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 22% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications.
- Flexibly configurable DALI damp proof luminaire with rotatabale reflectors
- Single or double reflectors
- largely acid & alkali-resistant due to (PRACHT-OPAL)
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
- Built-in industrial components for higher transient resistance 4kV and longer service life due to temperature resistance (-45 to +65 degrees)
technical data
| Beam angle | 60 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 9480295nNZ |
| REACH | Nein |
| market indicator | CE |
| length | 1560 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| through-wiring | 5x2.5 |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1560 x 232 x 142 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -45 … +60 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -45 °C |
| Ambient temperature (max) | 60 °C |
| Lichtstrom | 12000 lm |
| Leistung | 70 W |
| light output | 171 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.6 / 18.2 |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Service life L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 183870 h |
| Lifetime L80B50 (@Ta max) | 115286 h |
| Lifetime L90B50 (@Ta max) | 54955 h |
| Circuit breaker B16A | 32 Leuchten |
| Circuit breaker C16A | 53 Leuchten |
| Surge voltage resistance L/N-PE | 4.0 kV |
| REMADE Score | 22 % |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | B |
Tender text
Durable Reflector luminaire APOLLO G2 INDUSTRY 1560mm PO 2x35W 060° 12000lm 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 22% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications. Item number: 9480295n GTIN: 4018098428183 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1560mm x 232mm x 142mm; Diameter: mm
