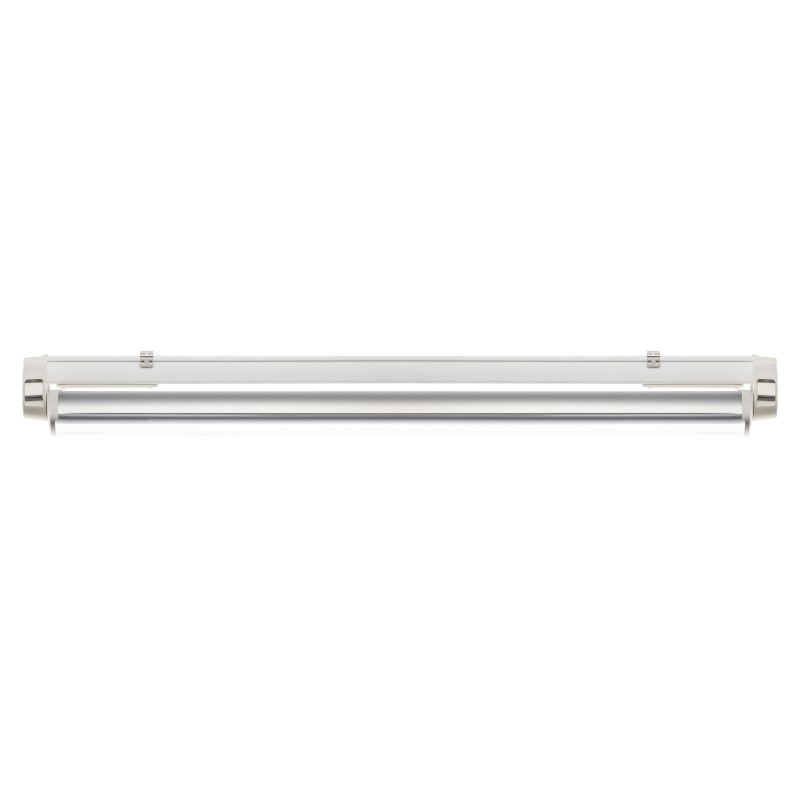

9485044m APOLLO REMADE 1260mm PO 1x32W 080° 5800lm
APOLLO REMADE 1260mm PO 1x32W 080° 5800lm, 4000K, class I, with TW 5x2,5mm². The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time.

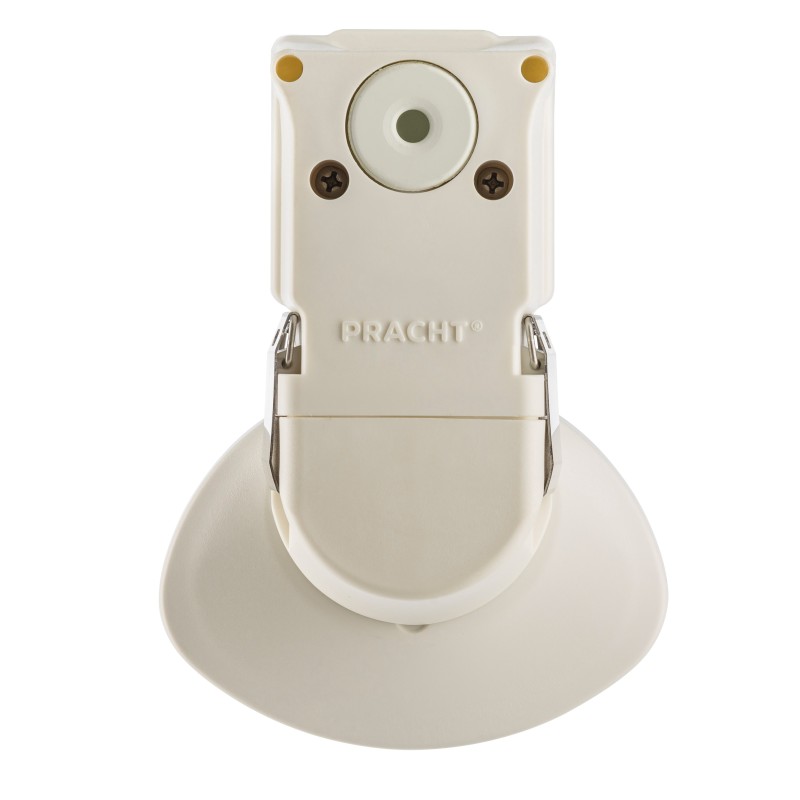

- Flexibly configurable free-standing spotlight with swivelling lightt
- single or twin-lamp reflectorst
- REMADE made from recycled materialst
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECTt
- Recyclable
technical data
| Beam angle | 80 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1260 mm |
| Multi-Lumen (EN) | FALSE |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | 5x2.5 |
| outdoor area | Indoor area |
| Protection class | class I |
| Dimensions (L x W x H) | 1260 x 105 x 152 mm |
| Dimmable/Controllable | Fixed Output |
| temperature range | -25 … +45 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | not suitable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| luminous flux | 5800 lm |
| Power | 32 W |
| light output | 181 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.0 / 19.7 |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Service life L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 227432 h |
| Lifetime L80B50 (@Ta max) | 142822 h |
| Lifetime L90B50 (@Ta max) | 68190 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 96 % |
| Energy efficiency class of light source | B |
| Circuit breaker B16A | 16 |
| Circuit breaker C16A | 26 |
| Emergency lighting suitability | no |
| Warranty | 5 Years |
Tender text
Sustainable Reflector luminaire APOLLO REMADE 1260mm PO 1x32W 080° 5800lm 4000K, class I, with TW 5x2,5mm². The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time. Item number: 9485044m GTIN: 4018098442189 Technical details/specification: Cover made of POr - PRACHTOPAL recyclate; Housing made of PC-PBT Recyclate white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1260mm x 105mm x 152mm; Diameter: mm
