9485047w APOLLO REMADE DALI 0709mm PO 1x21W 090° 3000lm

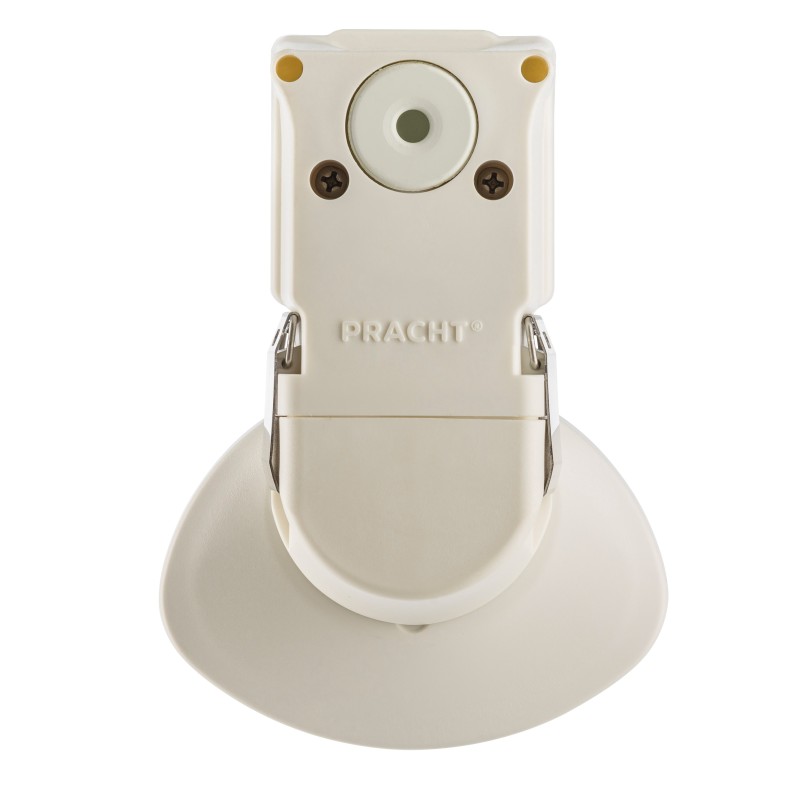

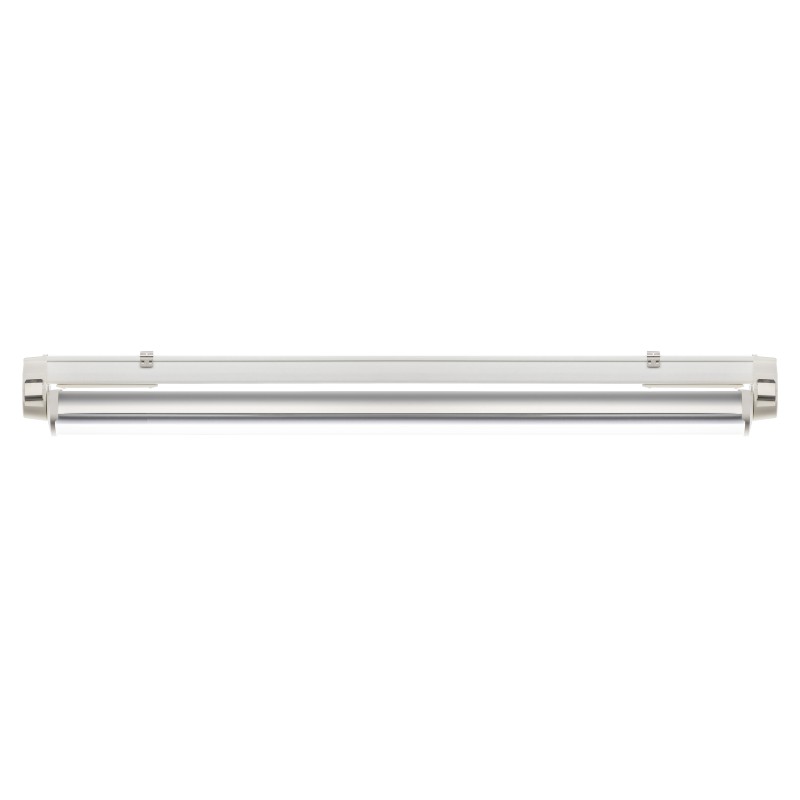

APOLLO REMADE DALI 0709mm PO 1x21W 090° 3000lm, 4000K, class I, with TW 5x2,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 94% recycled material. The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time.
- Flexibly configurable free-standing spotlight with swivelling lightt
- single or twin-lamp reflectorst
- REMADE made from recycled materialst
- compatible with trunking systems for quick installation with PRACHT-EASY-CONNECTt
- Recyclable
technical data
| Dimensions (L x W x H) | 709 x 105 x 152 mm |
|---|---|
| Luminous flux | 3000 lm |
| Performance | 21 W |
| Luminous efficacy | 143 lm/W |
| Color temperature | 4000 K |
| Beam angle | 90 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Indoor area |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 709 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.0 / 21.2 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -25 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 188070 h |
| Lifetime L80B50 (@Ta 25°C) | 118199 h |
| Lifetime L90B50 (@Ta 25°C) | 56568 h |
| Lifetime L70B10 (@Ta 25°C) | 125202 h |
| Lifetime L80B10 (@Ta 25°C) | 79660 h |
| Lifetime L90B10 (@Ta 25°C) | 39490 h |
| Lifetime L70B50 (@Ta max) | 181297 h |
| Lifetime L80B50 (@Ta max) | 113852 h |
| Lifetime L90B50 (@Ta max) | 54852 h |
| Line protection B16A | 28 Luminaires |
| Line protection C16A | 46 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| REMADE Score | 94 % |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Energy efficiency class Light source | B |
| Dimming/Control | DALI |
Tender text
Sustainable Reflector luminaire APOLLO REMADE DALI 0709mm PO 1x21W 090° 3000lm 4000K, class I, with TW 5x2,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 94% recycled material. The new APOLLO industrial reflector luminaire: IP65 protection, made from 98% recycled material, swiveling reflectors, efficient LED technology and easy installation - sustainable and powerful at the same time. Item number: 9485047w GTIN: 4018098442035 Technical details/specification: Cover made of POr - PRACHTOPAL recyclate; Housing made of PC-PBT Recyclate white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 709mm x 105mm x 152mm; Diameter: mm
