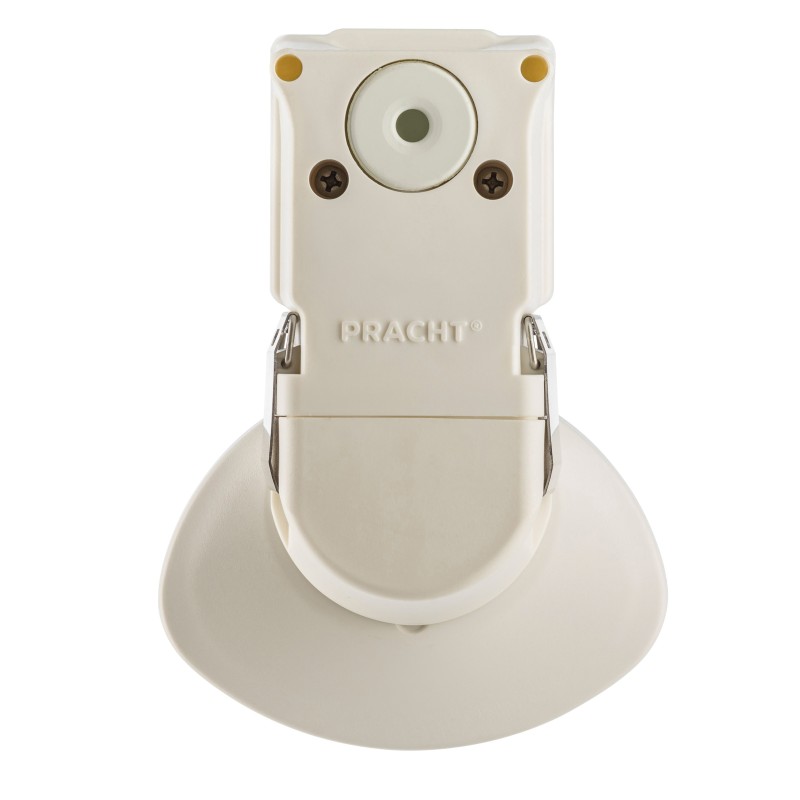

9486045o APOLLO ONE 1560mm PO 1x44W 090° 7000lm
APOLLO ONE 1560mm PO 1x44W 090° 7000lm, 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 97% recycled material. The new APOLLO industrial reflector luminaire offers ideal value for money: IP65 protection, made from 98% recycled material, swivel reflectors, efficient LED technology and easy installation – sustainable, powerful and attractively priced. • Flexibly configurable floodlight with swiveling light • Ideal price-performance ratio • Single-flame or double-flame reflectors • REMADE – made from 98% recycled materials • Compatible with mounting rail systems for quick installation with PRACHT EASY CONNECT • Recyclable
technical data
| Dimensions (L x W x H) | 1560 x 105 x 152 mm |
|---|---|
| Luminous flux | 7000 lm |
| Performance | 44 W |
| Luminous efficacy | 159 lm/W |
| Color temperature | 4000 K |
| Beam angle | 90 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC |
| Market indicator | CE |
| Through-wiring | 5x2,5 |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | with restriction |
| Multi-Lumen | No |
| Length | 1560 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.7 / 23.2 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Lifetime L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 210192 h |
| Lifetime L80B50 (@Ta max) | 131856 h |
| Lifetime L90B50 (@Ta max) | 62816 h |
| Line protection B16A | 16 Luminaires |
| Line protection C16A | 26 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9486045oNZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| REMADE Score | 97 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 45 °C |
| Certification mark | HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Favorable Reflector luminaire APOLLO ONE 1560mm PO 1x44W 090° 7000lm 4000K, class I, with TW 5x2,5mm². The plastic parts of this luminaire are made from 97% recycled material. The new APOLLO industrial reflector luminaire offers ideal value for money: IP65 protection, made from 98% recycled material, swivel reflectors, efficient LED technology and easy installation – sustainable, powerful and attractively priced. Item number: 9486045o GTIN: 4018098458005 Technical details/specification: Cover made of PMS - PRACHTOPAL MS; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1560mm x 105mm x 152mm; Diameter: mm
