7006615 BERNINA F SKII 1574mm PC 1x41W 090° 4500lm

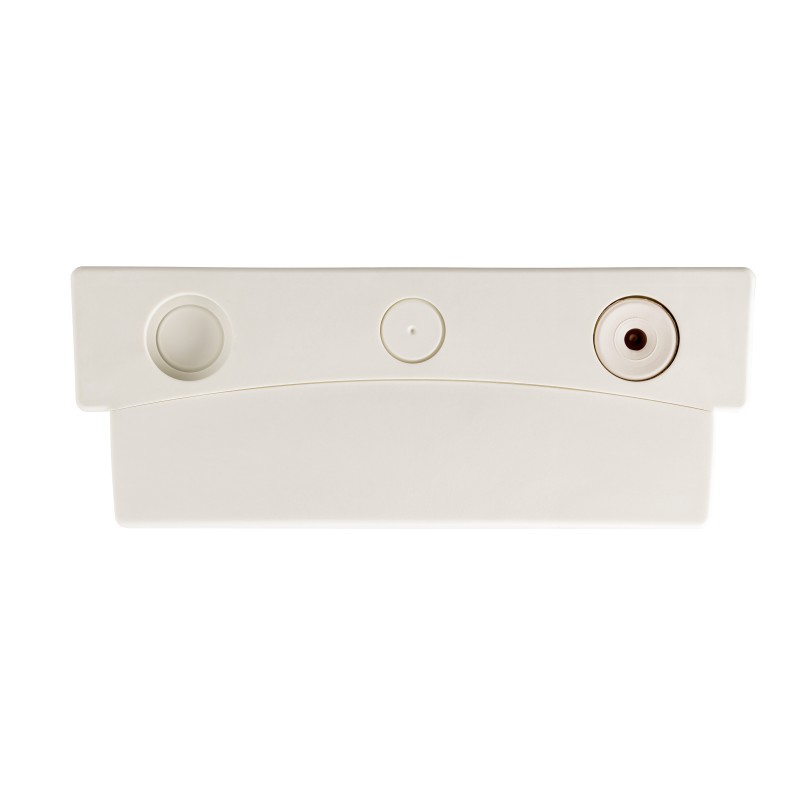

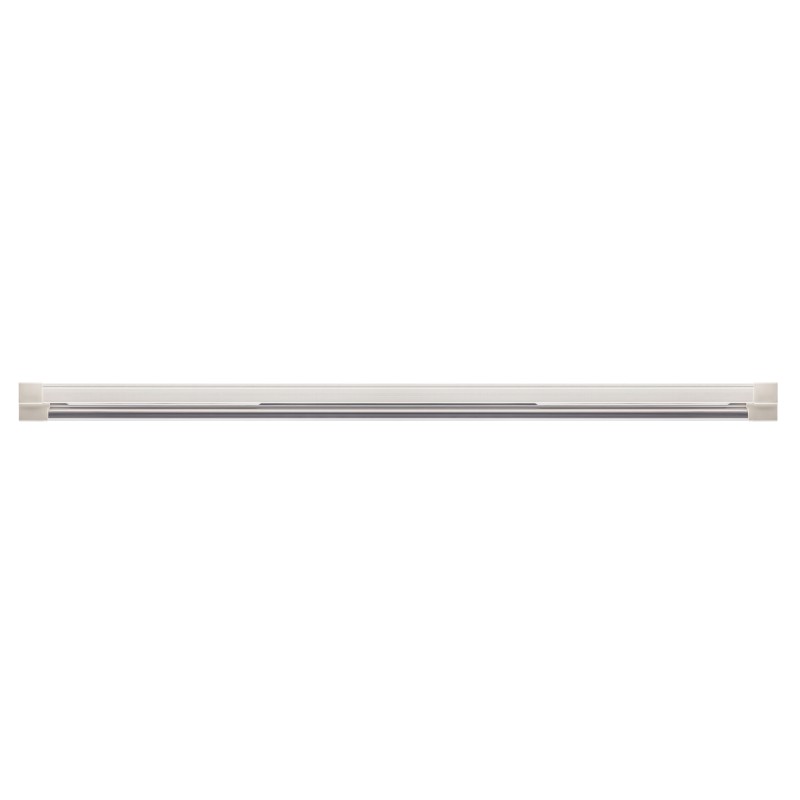

BERNINA F SKII 1574mm PC 1x41W 090° 4500lm, 4000K, class II, without TW. The BERNINA F SKII surface-mounted luminaire: extremely flat, efficient and robust, IP65 protection, impact-resistant PRACHTOPAL cover and easy installation - ¬especially suitable for use in transport companies, underpasses, platforms, etc.
- Recessed or surface-mounted luminaire particularly suitable for use in transport companies, underpasses, platforms, etc.
- 4kV transient protection and inrush current limiter (optional)
- Combinable with light tube systems (optional)
- Extremely flat design
- With flat cover suitable for PRACHT media channel
- class II
- ENEC compliant
technical data
| Beam angle | 90 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1574 mm |
| Multi-Lumen (EN) | FALSE |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | without |
| outdoor area | Protected outdoor area* |
| Protection class | class II |
| Dimensions (L x W x H) | 1574 x 215 x 85 mm |
| Dimmable/Controllable | Fixed Output |
| temperature range | -25 … +45 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | not suitable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| luminous flux | 4500 lm |
| Power | 41 W |
| light output | 110 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 18.3 / 18.2 |
| Lifetime L70B50 (@Ta 25°C) | 189090 h |
| Service life L80B50 (@Ta 25°C) | 118490 h |
| Lifetime L90B50 (@Ta 25°C) | 56231 h |
| Lifetime L70B10 (@Ta 25°C) | 142194 h |
| Lifetime L80B10 (@Ta 25°C) | 89418 h |
| Lifetime L90B10 (@Ta 25°C) | 42866 h |
| Lifetime L70B50 (@Ta max) | 174846 h |
| Lifetime L80B50 (@Ta max) | 110002 h |
| Lifetime L90B50 (@Ta max) | 52531 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Energy efficiency class of light source | D |
| Circuit breaker B16A | 24 |
| Circuit breaker C16A | 40 |
| Emergency lighting suitability | Yes, with article number 7006615NZ |
| Warranty | 5 Years |
Tender text
Flat Surface-mounted light BERNINA F SKII 1574mm PC 1x41W 090° 4500lm 4000K, class II, without TW. The BERNINA F SKII surface-mounted luminaire: extremely flat, efficient and robust, IP65 protection, impact-resistant PRACHTOPAL cover and easy installation - ¬especially suitable for use in transport companies, underpasses, platforms, etc. Item number: 7006615 GTIN: 4018098351153 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1574mm x 215mm x 85mm; Diameter: mm
