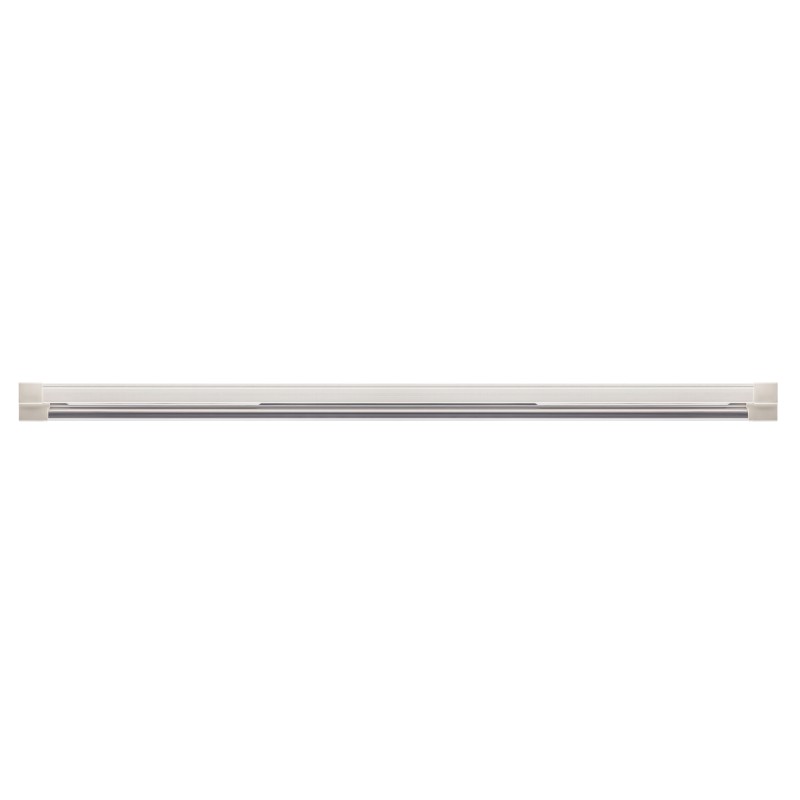

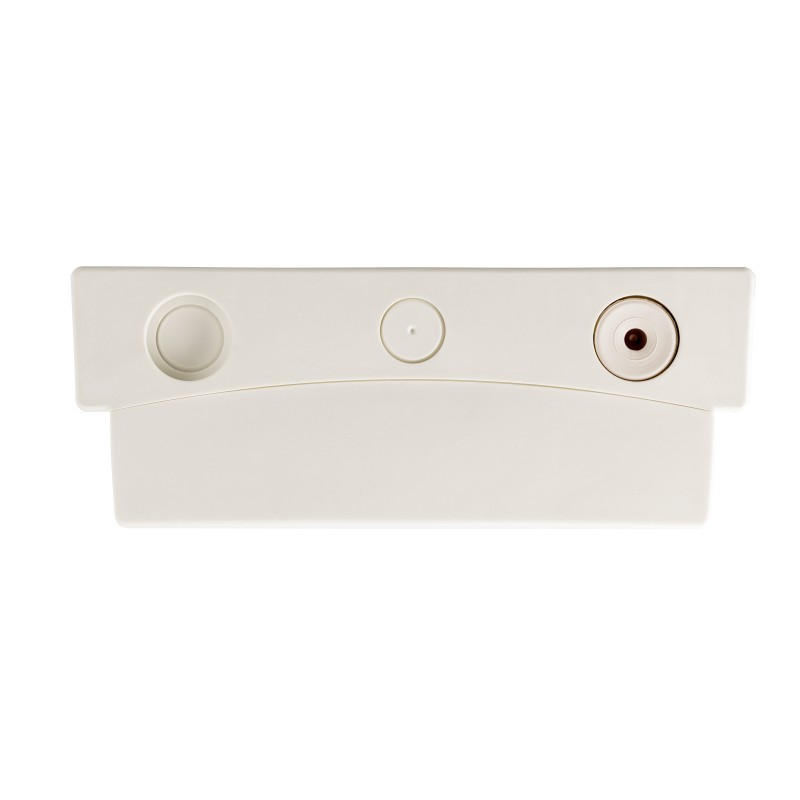

7006737 BERNINA F SKII DALI 0714mm PC 1x27W 090° 2700lm
BERNINA F SKII DALI 0714mm PC 1x27W 090° 2700lm, 4000K, class II, without TW, Surge protection, inrush current limiter. The BERNINA F SKII surface-mounted luminaire: extremely flat, efficient and robust, IP65 protection, impact-resistant PRACHTOPAL cover and easy installation - ¬especially suitable for use in transport companies, underpasses, platforms, etc.
- Recessed or surface-mounted luminaire particularly suitable for use in transport companies, underpasses, platforms, etc.
- 4kV transient protection and inrush current limiter (optional)
- Combinable with light tube systems (optional)
- Extremely flat design
- With flat cover suitable for PRACHT media channel
- class II
- ENEC compliant
technical data
| Ausstrahlwinkel | 90 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 714 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 714 x 215 x 85 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -25 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -25 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 2700 lm |
| Leistung | 27 W |
| Lichtausbeute | 100 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 90 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 19.8 / 19.8 |
| Lebensdauer L70B50 (@Ta 25°C) | 189090 h |
| Lebensdauer L80B50 (@Ta 25°C) | 118490 h |
| Lebensdauer L90B50 (@Ta 25°C) | 56231 h |
| Lebensdauer L70B10 (@Ta 25°C) | 142194 h |
| Lebensdauer L80B10 (@Ta 25°C) | 89418 h |
| Lebensdauer L90B10 (@Ta 25°C) | 42866 h |
| Lebensdauer L70B50 (@Ta max) | 150690 h |
| Lebensdauer L80B50 (@Ta max) | 94688 h |
| Lebensdauer L90B50 (@Ta max) | 45301 h |
| Zertifizierungszeichen | DB |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 49 |
| Leitungsschutz C16A | 83 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Flat Surface-mounted light BERNINA F SKII DALI 0714mm PC 1x27W 090° 2700lm 4000K, class II, without TW, Surge protection, inrush current limiter. The BERNINA F SKII surface-mounted luminaire: extremely flat, efficient and robust, IP65 protection, impact-resistant PRACHTOPAL cover and easy installation - ¬especially suitable for use in transport companies, underpasses, platforms, etc. Item number: 7006737 GTIN: 4018098351573 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 714mm x 215mm x 85mm; Diameter: mm
