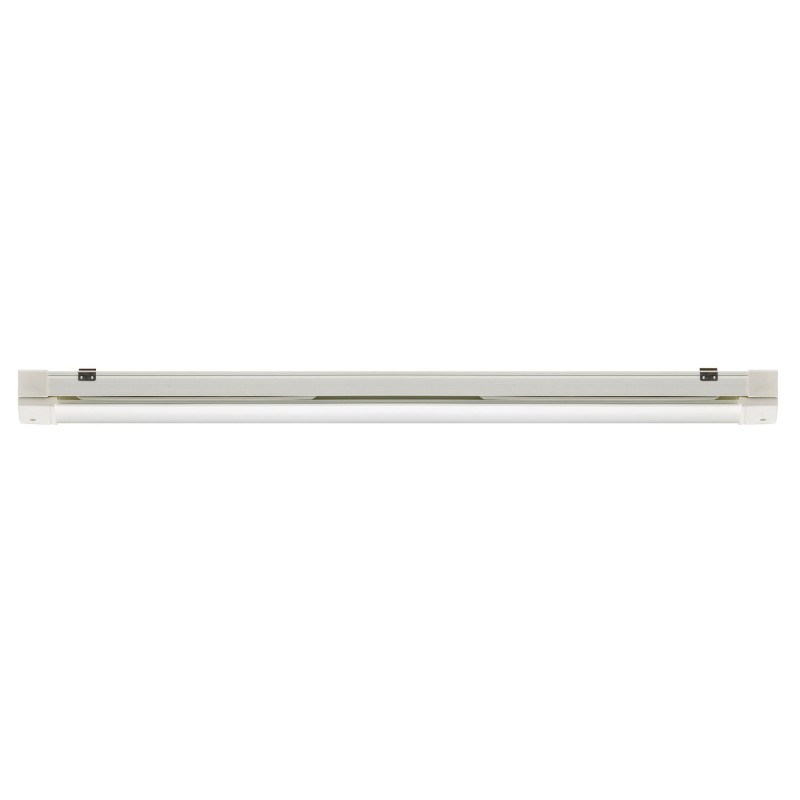

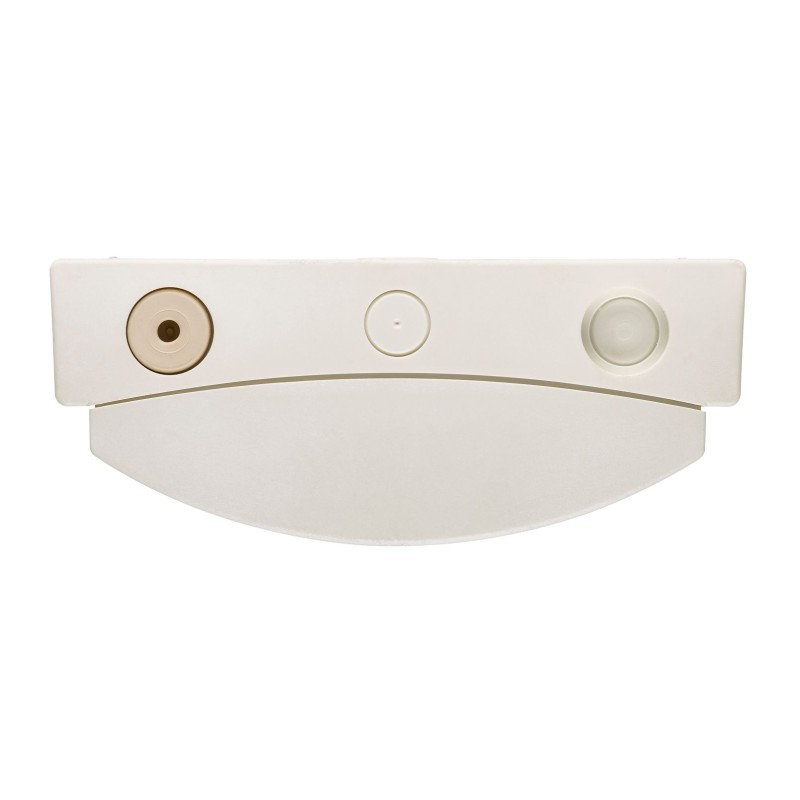

7083720 BERNINA R SKII DALI 1574mm PO 1x41W 105° 5700lm
BERNINA R SKII DALI 1574mm PO 1x41W 105° 5700lm, 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. The BERNINA R SKII round surface-mounted luminaire: IP65 protection, efficient and robust, impact-resistant PRACHTOPAL cover, replaceable LED unit and easy installation - particularly suitable for use in transport companies, underpasses, platforms, etc.
- Recessed or surface-mounted luminaire particularly suitable for use in transport companies, underpasses, platforms, etc.
- 4kV transient protection and inrush current limiter (optional)
- Combinable with light tube systems (optional)
- Extremely flat design
- With rounded cover suitable for the PRACHT media channel
- class II
- ENEC compliant
technical data
| Dimensions (L x W x H) | 1574 x 215 x 90 mm |
|---|---|
| Luminous flux | 5700 lm |
| Performance | 41 W |
| Luminous efficacy | 139 lm/W |
| Color temperature | 4000 K |
| Beam angle | 105 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1574 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 20.8 / 21.5 |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Protection class | SK II |
| Temperature range | -25 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 189090 h |
| Lifetime L80B50 (@Ta 25°C) | 118490 h |
| Lifetime L90B50 (@Ta 25°C) | 56231 h |
| Lifetime L70B10 (@Ta 25°C) | 142194 h |
| Lifetime L80B10 (@Ta 25°C) | 89418 h |
| Lifetime L90B10 (@Ta 25°C) | 42866 h |
| Lifetime L70B50 (@Ta max) | 174846 h |
| Lifetime L80B50 (@Ta max) | 110002 h |
| Lifetime L90B50 (@Ta max) | 52531 h |
| Line protection B16A | 41 Luminaires |
| Line protection C16A | 41 Luminaires |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7083720NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Rounded Surface-mounted light BERNINA R SKII DALI 1574mm PO 1x41W 105° 5700lm 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. The BERNINA R SKII round surface-mounted luminaire: IP65 protection, efficient and robust, impact-resistant PRACHTOPAL cover, replaceable LED unit and easy installation - particularly suitable for use in transport companies, underpasses, platforms, etc. Item number: 7083720 GTIN: 4018098353638 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1574mm x 215mm x 90mm; Diameter: mm
