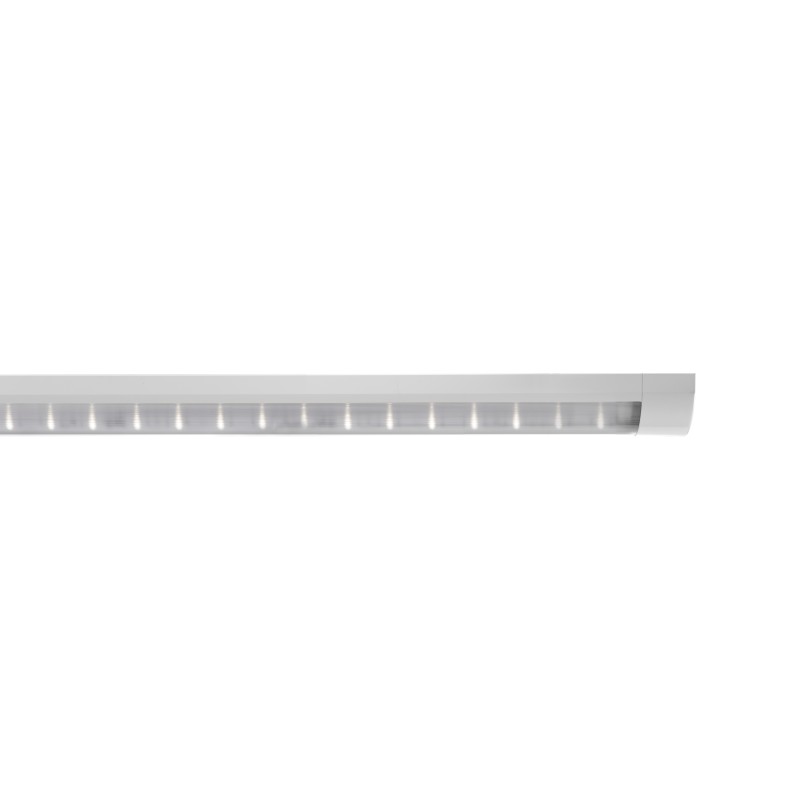

76031306 TROJA G2 DALI 1561mm PCO 1x54W A100° 6700lm
TROJA G2 DALI 1561mm PCO 1x54W A100° 6700lm, 4000K, class I, without TW, asymmetric. Vandal-proof LED luminaire (IK11 / 100 joules) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM.
- Vandalism and access-protected LED luminaire IK11 ( 100 joules )
- Anti-graffiti protection possible
- Ideally suited for security-relevant areas and in environments at risk of vandalism such as transport companies, underpasses, public areas, traffic facilities, train stations, prisons, etc.
- ideally suited for the PRACHT media channel
- architecturally appealing due to flat geometry and exterior color, suitable for protected outdoor areas (IP 65)
- 4kV transient protection and inrush current limitation
technical data
| Dimensions (L x W x H) | 1561 x 260 x 70 mm |
|---|---|
| Luminous flux | 6700 lm |
| Performance | 54 W |
| Luminous efficacy | 124 lm/W |
| Color temperature | 4000 K |
| Beam angle | 100 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | Yes |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1561 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 21.3 / 20.7 |
| IP protection class | IP65 |
| IK Impact resistance | IK11 (100J) |
| Protection class | SK I |
| Temperature range | -20 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Lifetime L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 193955 h |
| Lifetime L80B50 (@Ta max) | 121336 h |
| Lifetime L90B50 (@Ta max) | 57640 h |
| Line protection B16A | 22 Luminaires |
| Line protection C16A | 36 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 45 °C |
| Certification mark | ENEC |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Vandalism-protected Surface-mounted light TROJA G2 DALI 1561mm PCO 1x54W A100° 6700lm 4000K, class I, without TW, asymmetric. Vandal-proof LED luminaire (IK11 / 100 joules) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM. Item number: 76031306 GTIN: 4018098298922 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1561mm x 260mm x 70mm; Diameter: mm
