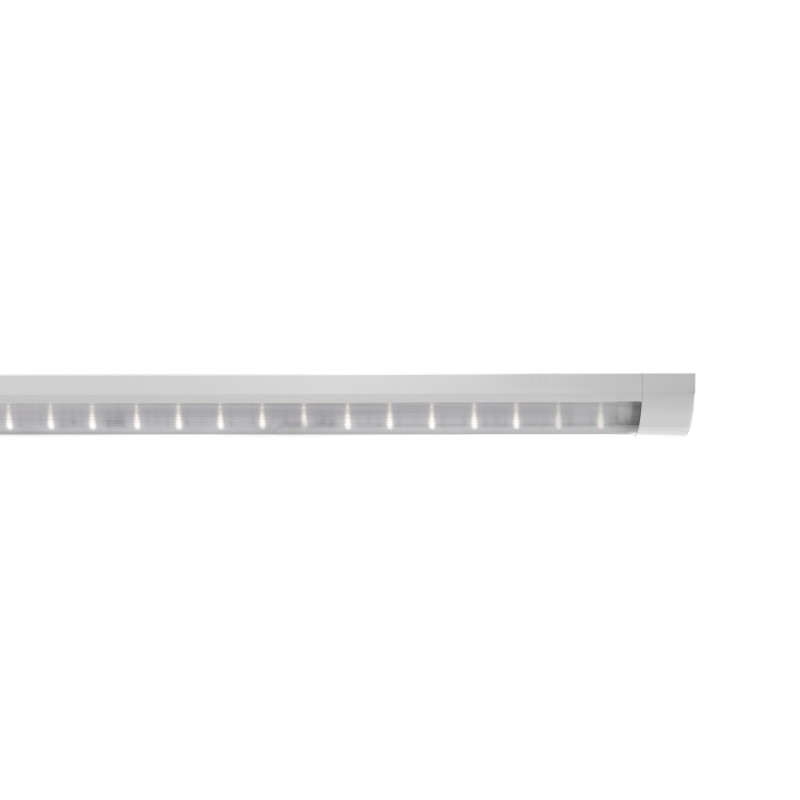

76136121 TROJA G2 SKII 0705mm PCO 1x18W 110° 1800lm
TROJA G2 SKII 0705mm PCO 1x18W 110° 1800lm, 4000K, class II, with TW 2x1,5mm². Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM.
- vandalism and access-protected LED luminaire IK11 ( 100 joules )
- ant graffiti protection
- ideally suited for security-relevant areas as well as in environments at risk of vandalism such as transport companies, underpasses, public areas, traffic facilities, train stations, prisons, etc.
- ideally suited for the PRACHT media channel
- architecturally appealing due to flat geometry and exterior color, suitable for protected outdoor areas (IP 65)
- 4kV transient protection and inrush current limitation
- class II
technical data
| Ausstrahlwinkel | 110 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 705 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK11 (100J) |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 2x1.5 |
| Outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 705 x 260 x 72 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -25 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | Yes |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -25 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 1800 lm |
| Leistung | 18 W |
| Lichtausbeute | 100 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 90 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 20.0 / 21.9 |
| Lebensdauer L70B50 (@Ta 25°C) | 189090 h |
| Lebensdauer L80B50 (@Ta 25°C) | 118490 h |
| Lebensdauer L90B50 (@Ta 25°C) | 56231 h |
| Lebensdauer L70B10 (@Ta 25°C) | 142194 h |
| Lebensdauer L80B10 (@Ta 25°C) | 89418 h |
| Lebensdauer L90B10 (@Ta 25°C) | 42866 h |
| Lebensdauer L70B50 (@Ta max) | 181164 h |
| Lebensdauer L80B50 (@Ta max) | 113500 h |
| Lebensdauer L90B50 (@Ta max) | 53938 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 23 |
| Leitungsschutz C16A | 38 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Vandalism-protected Surface-mounted light TROJA G2 SKII 0705mm PCO 1x18W 110° 1800lm 4000K, class II, with TW 2x1,5mm². Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM. Item number: 76136121 GTIN: 4018098314660 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 2x1.5; Dimensions: LxWxH: 705mm x 260mm x 72mm; Diameter: mm
