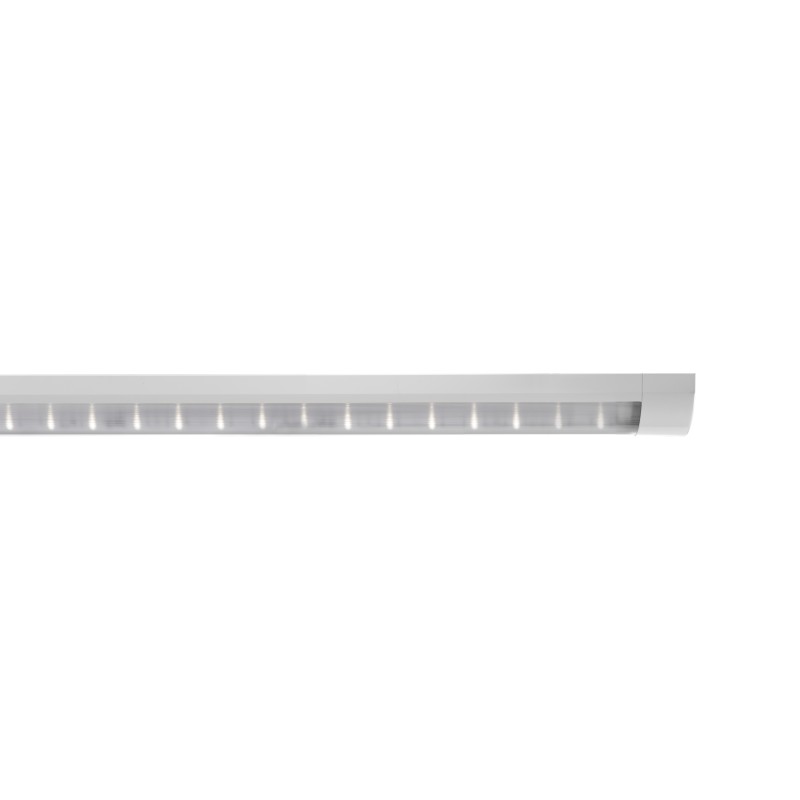

76136576 TROJA G2 SKII DALI 0705mm PCO 1x35W A100° 3300lm
TROJA G2 SKII DALI 0705mm PCO 1x35W A100° 3300lm, 4000K, class II, with TW 2x1,5mm²+2x1,5mm², asymmetric. Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM.
- vandalism and access-protected LED luminaire IK11 ( 100 joules )
- ant graffiti protection
- ideally suited for security-relevant areas as well as in environments at risk of vandalism such as transport companies, underpasses, public areas, traffic facilities, train stations, prisons, etc.
- ideally suited for the PRACHT media channel
- architecturally appealing due to flat geometry and exterior color, suitable for protected outdoor areas (IP 65)
- 4kV transient protection and inrush current limitation
- class II
technical data
| Beam angle | 100 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | nein |
| REACH | Nein |
| market indicator | CE |
| length | 705 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK11 (100J) |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| through-wiring | 2x1.5+2x1.5 (DALI) |
| outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 705 x 260 x 72 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -25 … +45 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Ja |
| animal husbandry | not suitable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 45 °C |
| Lichtstrom | 3300 lm |
| Leistung | 35 W |
| light output | 94 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 21.9 / 21.5 |
| Lifetime L70B50 (@Ta 25°C) | 117498 h |
| Service life L80B50 (@Ta 25°C) | 74661 h |
| Lifetime L90B50 (@Ta 25°C) | 36164 h |
| Lifetime L70B10 (@Ta 25°C) | 105407 h |
| Lifetime L80B10 (@Ta 25°C) | 66754 h |
| Lifetime L90B10 (@Ta 25°C) | 32513 h |
| Lifetime L70B50 (@Ta max) | 105286 h |
| Lifetime L80B50 (@Ta max) | 66464 h |
| Lifetime L90B50 (@Ta max) | 32058 h |
| Circuit breaker B16A | 21 Leuchten |
| Circuit breaker C16A | 35 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Energy efficiency class of light source | D |
Tender text
Vandalism-protected Surface-mounted light TROJA G2 SKII DALI 0705mm PCO 1x35W A100° 3300lm 4000K, class II, with TW 2x1,5mm²+2x1,5mm², asymmetric. Vandal-proof LED luminaire (IK10, 100 joules and class II) with robust aluminum housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM. Item number: 76136576 GTIN: 4018098314813 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 2x1.5+2x1.5 (DALI); Dimensions: LxWxH: 705mm x 260mm x 72mm; Diameter: mm
