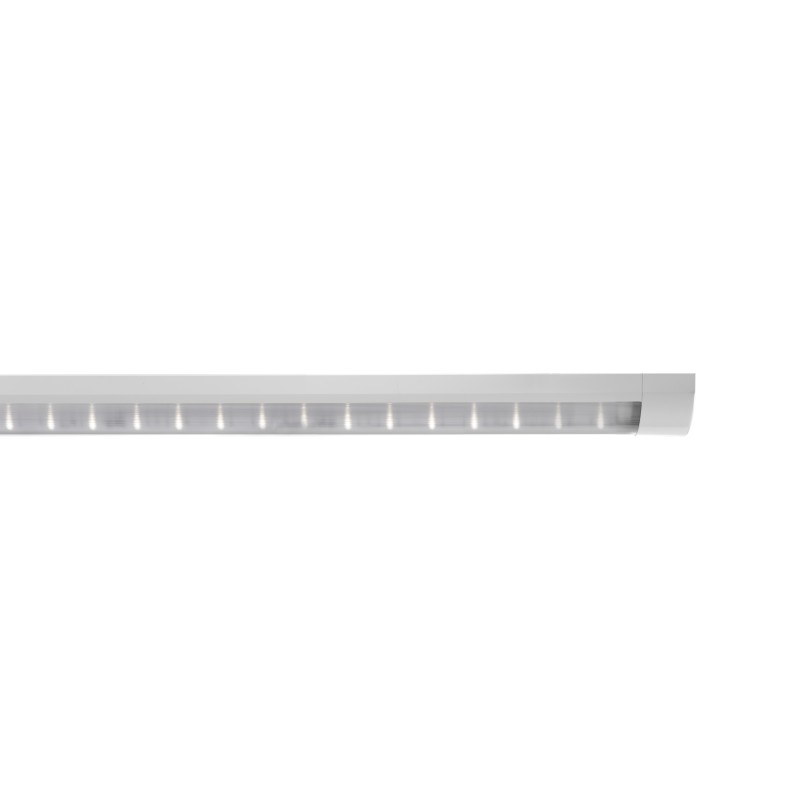

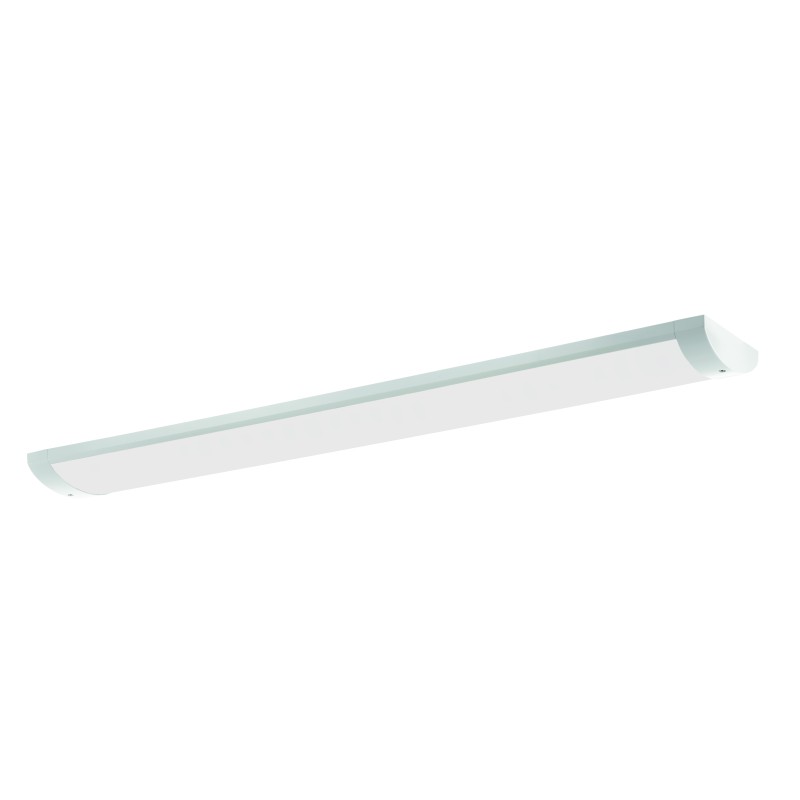

7683c991 TROJA G2 DB DALI 1261mm PCO 1x52W 110° 6056lm
TROJA G2 DB DALI 1261mm PCO 1x52W 110° 6056lm, 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. Deutsche Bahn-certified, vandal-proof LED luminaire (IK11 / 100 joules) with robust aluminium housing, impact-resistant PC cover and protected one-man installation thanks to the PRACHT CLAMP SYSTEM.
- Vandalism-proof and tamper-proof IK11+ LED light (100 joules)
- Anti-graffiti protection possible
- Ideal for security-relevant areas and environments at risk of vandalism, such as transport companies, underpasses, public areas, transport facilities, stations, prisons, etc.
- Ideal for the PRACHT media channel
- Architecturally appealing due to flat geometry and exterior colour, suitable for protected outdoor areas (IP 65)
- 4kV transient protection and inrush current limitation
technical data
| Dimensions (L x W x H) | 1261 x 260 x 70 mm |
|---|---|
| Luminous flux | 6056 lm |
| Power | 52 W |
| Luminous efficacy | 116 lm/W |
| Color temperature | 4000 K |
| Beam angle | 110 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC |
| Market indicator | CE |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | Yes |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1261 mm |
| Color rendering Ra | 80 |
| Glare rating (UGR 4H 8H) | 22.3 / 22.9 |
| IP protection class | IP65 |
| IK Impact resistance | IK11 (100J) |
| Protection class | SK II |
| Temperature range | -20 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 415888 h |
| Lifetime L80B50 (@Ta 25°C) | 255539 h |
| Lifetime L90B50 (@Ta 25°C) | 114101 h |
| Lifetime L70B10 (@Ta 25°C) | 342131 h |
| Lifetime L80B10 (@Ta 25°C) | 210738 h |
| Lifetime L90B10 (@Ta 25°C) | 94816 h |
| Lifetime L70B50 (@Ta max) | 415888 h |
| Lifetime L80B50 (@Ta max) | 255539 h |
| Lifetime L90B50 (@Ta max) | 114101 h |
| Line protection B16A | 39 Luminaires |
| Line protection C16A | 39 Luminaires |
| Rated voltage / frequency | 220-240V 50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 45 °C |
| Certification mark | DB ENEC |
| Dimming/Control | DALI |
