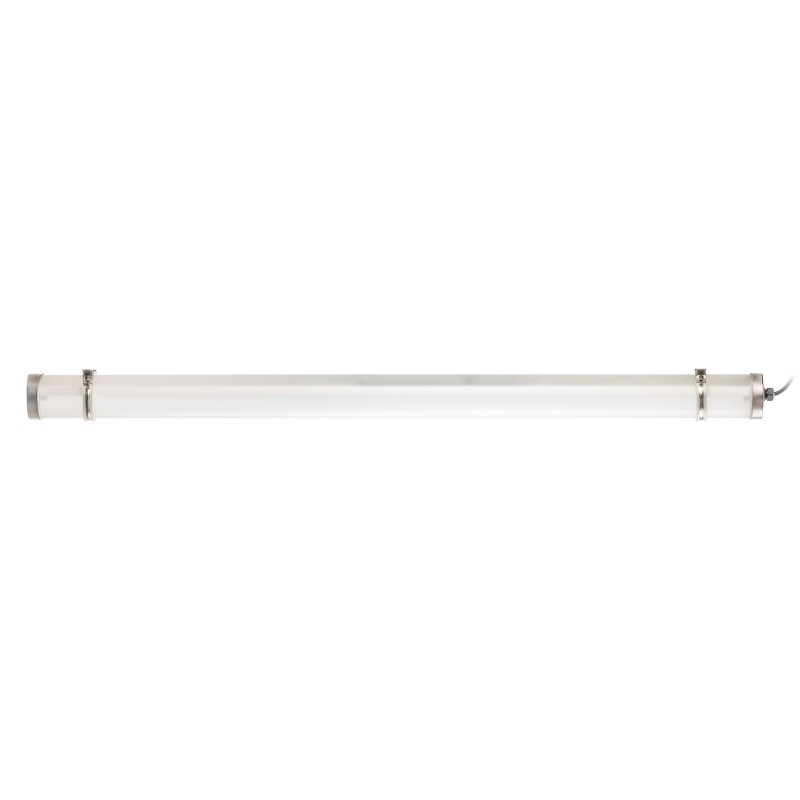

7206634 TUBIS AQUA 1250mm PO 1x35W 125° 5400lm
TUBIS AQUA 1250mm PO 1x35W 125° 5400lm, 4000K, class I, without TW. LED round tube luminaire with MID-power LEDs, integrated converter and 90 mm diameter. Rotatable through 360°, PRACHTOPAL housing (impact-resistant, acid/alkali-resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas.
- Extremely dense circular tube luminaire
- High-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali resistant
- KTW compliant
- IFS certified
technical data
| Beam angle | 125 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1250 mm |
| Multi-Lumen (EN) | FALSE |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK09 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Dimensions (L x W x H) | 1250 x 90 x 105 mm |
| Dimmable/Controllable | Fixed Output |
| temperature range | -20 … +35 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | with limitation |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| luminous flux | 5400 lm |
| Power | 35 W |
| light output | 154 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 22.5 / 25.0 |
| Lifetime L70B50 (@Ta 25°C) | 231103 h |
| Service life L80B50 (@Ta 25°C) | 146191 h |
| Lifetime L90B50 (@Ta 25°C) | 71294 h |
| Lifetime L70B10 (@Ta 25°C) | 200343 h |
| Lifetime L80B10 (@Ta 25°C) | 126317 h |
| Lifetime L90B10 (@Ta 25°C) | 61022 h |
| Lifetime L70B50 (@Ta max) | 214342 h |
| Lifetime L80B50 (@Ta max) | 134588 h |
| Lifetime L90B50 (@Ta max) | 64398 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| certification mark | HACCP IFS |
| Energy efficiency class of light source | C |
| Circuit breaker B16A | 24 |
| Circuit breaker C16A | 40 |
| Emergency lighting suitability | Yes, with article number 7206634NZ |
| Warranty | 5 Years |
Tender text
extremly dense Round tube luminaire TUBIS AQUA 1250mm PO 1x35W 125° 5400lm 4000K, class I, without TW. LED round tube luminaire with MID-power LEDs, integrated converter and 90 mm diameter. Rotatable through 360°, PRACHTOPAL housing (impact-resistant, acid/alkali-resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas. Item number: 7206634 GTIN: 4018098462668 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 1250mm x 90mm x 105mm; Diameter: 90mm
