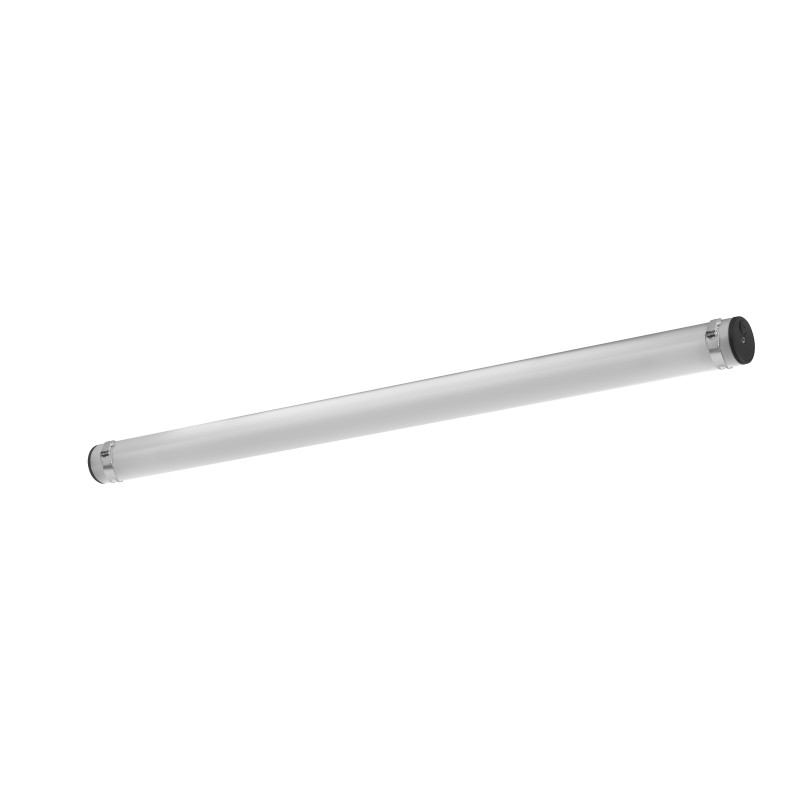

7207639 TUBIS 90 DALI 1270mm PO 1x35W 125° 5400lm
TUBIS 90 DALI 1270mm PO 1x35W 125° 5400lm, 4000K, class I, without TW. LED round tube luminaire with MID power LEDs, integrated converter and 90 mm diameter. Rotates 360°, PRACHTOPAL housing (impact-resistant, acid/alkali resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas.
- Configurable tube light: housing, length, TW, color temperature, Dali, connection cable, etc.
- High-pressure watertight and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali resistant
- 360° rotatable light
- IFS-certified
technical data
| Ausstrahlwinkel | 125 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1270 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1270 x 90 x 103 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | with limitation |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 5400 lm |
| Leistung | 35 W |
| Lichtausbeute | 154 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 22.5 / 25.0 |
| Lebensdauer L70B50 (@Ta 25°C) | 231103 h |
| Lebensdauer L80B50 (@Ta 25°C) | 146191 h |
| Lebensdauer L90B50 (@Ta 25°C) | 71294 h |
| Lebensdauer L70B10 (@Ta 25°C) | 200343 h |
| Lebensdauer L80B10 (@Ta 25°C) | 126317 h |
| Lebensdauer L90B10 (@Ta 25°C) | 61022 h |
| Lebensdauer L70B50 (@Ta max) | 214342 h |
| Lebensdauer L80B50 (@Ta max) | 134588 h |
| Lebensdauer L90B50 (@Ta max) | 64398 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| REMADE Score | 86 % |
| Zertifizierungszeichen | HACCP IFS |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 13 |
| Leitungsschutz C16A | 21 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Sustainable Round tube luminaire TUBIS 90 DALI 1270mm PO 1x35W 125° 5400lm 4000K, class I, without TW. LED round tube luminaire with MID power LEDs, integrated converter and 90 mm diameter. Rotates 360°, PRACHTOPAL housing (impact-resistant, acid/alkali resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas. Item number: 7207639 GTIN: 4018098454335 Technical details/specification: Cover made of PO8 - PRACHTOPAL M8; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 1270mm x 90mm x 103mm; Diameter: 90mm
