7207655 TUBIS 90 1550mm PO 1x54W 125° 8200lm

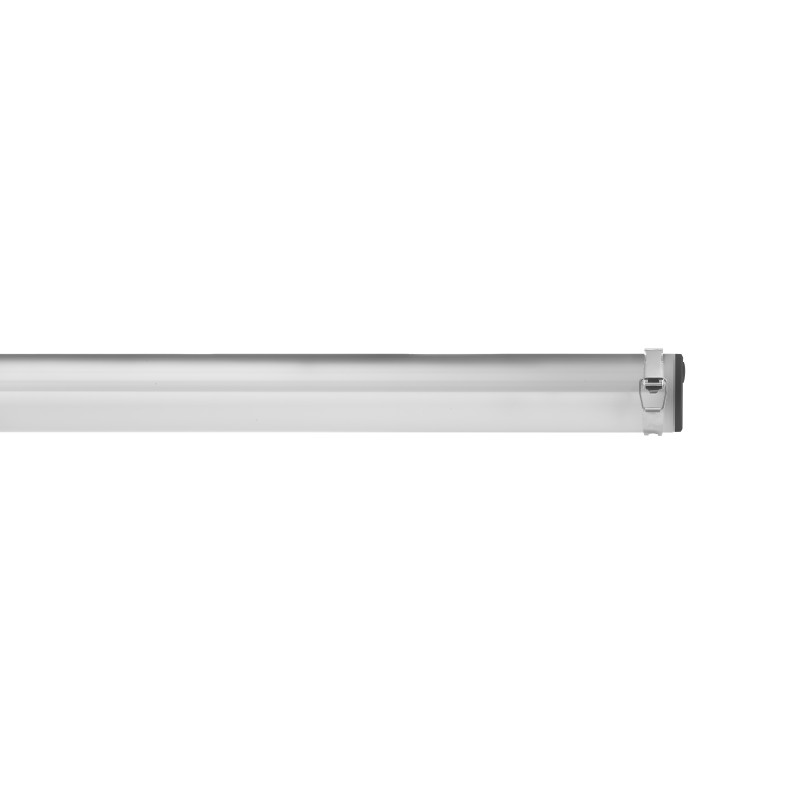

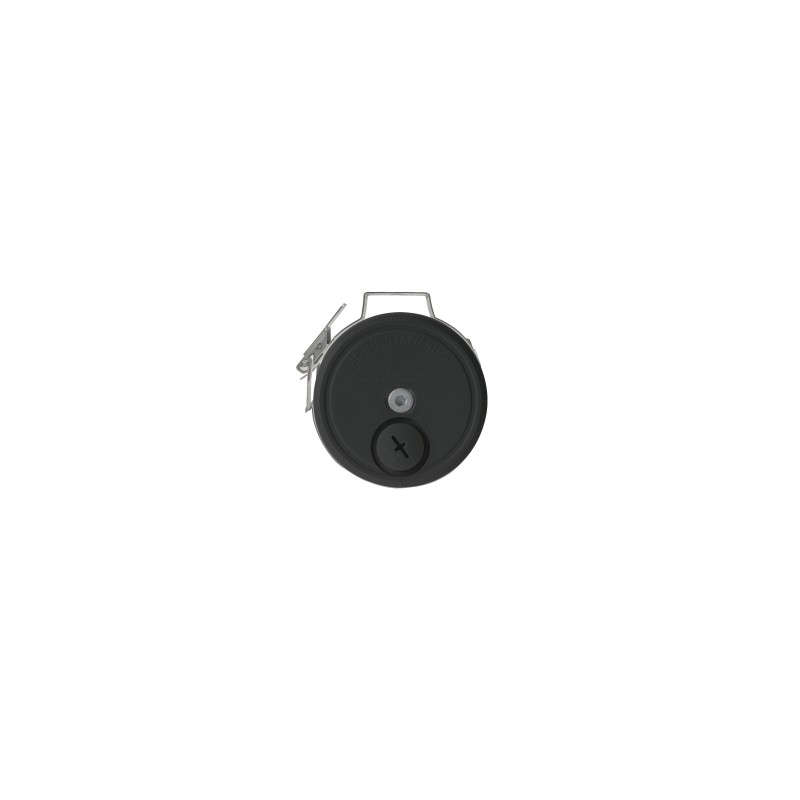

TUBIS 90 1550mm PO 1x54W 125° 8200lm, 4000K, class I, without TW. LED round tube luminaire with MID power LEDs, integrated converter and 90 mm diameter. Rotates 360°, PRACHTOPAL housing (impact-resistant, acid/alkali resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas.
- Configurable tube light: housing, length, TW, color temperature, Dali, connection cable, etc.
- High-pressure watertight and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali resistant
- 360° rotatable light
- IFS-certified
technical data
| Beam angle | 125 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1550 mm |
| Multi-Lumen (EN) | FALSE |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Dimensions (L x W x H) | 1550 x 90 x 103 mm |
| Dimmable/Controllable | Fixed Output |
| temperature range | -20 … +35 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | with limitation |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| luminous flux | 8200 lm |
| Power | 54 W |
| light output | 152 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.2 / 25.7 |
| Lifetime L70B50 (@Ta 25°C) | 231103 h |
| Service life L80B50 (@Ta 25°C) | 146191 h |
| Lifetime L90B50 (@Ta 25°C) | 71294 h |
| Lifetime L70B10 (@Ta 25°C) | 200343 h |
| Lifetime L80B10 (@Ta 25°C) | 126317 h |
| Lifetime L90B10 (@Ta 25°C) | 61022 h |
| Lifetime L70B50 (@Ta max) | 214342 h |
| Lifetime L80B50 (@Ta max) | 134588 h |
| Lifetime L90B50 (@Ta max) | 64398 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 86 % |
| certification mark | HACCP IFS |
| Energy efficiency class of light source | C |
| Circuit breaker B16A | 18 |
| Circuit breaker C16A | 30 |
| Emergency lighting suitability | Yes, with article number 7207655NZ |
| Warranty | 5 Years |
Tender text
Sustainable Round tube luminaire TUBIS 90 1550mm PO 1x54W 125° 8200lm 4000K, class I, without TW. LED round tube luminaire with MID power LEDs, integrated converter and 90 mm diameter. Rotates 360°, PRACHTOPAL housing (impact-resistant, acid/alkali resistant), silicone seals, variable mounting options (ceiling, wall, pendant), also suitable for outdoor areas. Item number: 7207655 GTIN: 4018098454359 Technical details/specification: Cover made of PO8 - PRACHTOPAL M8; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 1550mm x 90mm x 103mm; Diameter: 90mm
