7273610 TUBIS N LED DALI 1575mm PO 1x35W 125° 5600lm

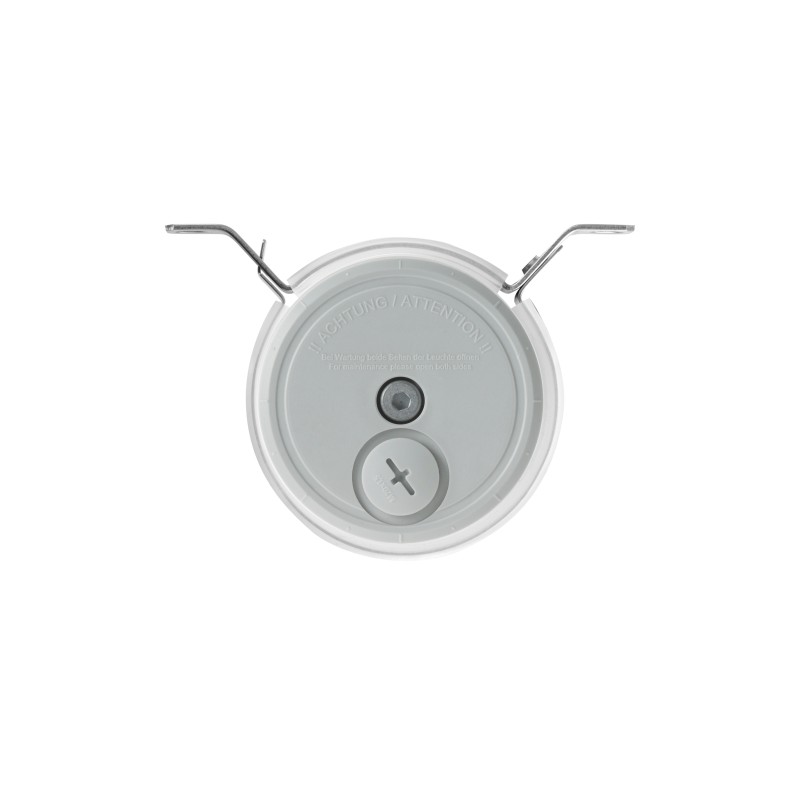

TUBIS N LED DALI 1575mm PO 1x35W 125° 5600lm, 4000K, class I, with TW 3x1,5mm²+2x1,5mm². LED round tube light with MID-Power LEDs and integrated converter, impact-resistant PRACHTOPAL housing (Ø 90mm), 360° rotatable, acid and alkali-resistant, versatile mounting for demanding applications, even outdoors.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- high-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
technical data
| Dimensions (L x W x H) | 1575 x 90 x 105 mm |
|---|---|
| Luminous flux | 5600 lm |
| Performance | 35 W |
| Luminous efficacy | 160 lm/W |
| Color temperature | 4000 K |
| Beam angle | 125 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1.5+2x1.5 (DALI) |
| Outdoor area | Unprotected outdoor area in direct proximity to the building with cable entry from below or from the side |
| Vandalism protection | No |
| Animal husbandry | with restriction |
| Multi-Lumen | No |
| Length | 1575 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 21.9 / 24.3 |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK09 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 231103 h |
| Lifetime L80B50 (@Ta 25°C) | 146191 h |
| Lifetime L90B50 (@Ta 25°C) | 71294 h |
| Lifetime L70B10 (@Ta 25°C) | 200343 h |
| Lifetime L80B10 (@Ta 25°C) | 126317 h |
| Lifetime L90B10 (@Ta 25°C) | 61022 h |
| Lifetime L70B50 (@Ta max) | 221483 h |
| Lifetime L80B50 (@Ta max) | 139467 h |
| Lifetime L90B50 (@Ta max) | 67127 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 30 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7273610NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Certification mark | ENEC HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Food-certified Round tube luminaire TUBIS N LED DALI 1575mm PO 1x35W 125° 5600lm 4000K, class I, with TW 3x1,5mm²+2x1,5mm². LED round tube light with MID-Power LEDs and integrated converter, impact-resistant PRACHTOPAL housing (Ø 90mm), 360° rotatable, acid and alkali-resistant, versatile mounting for demanding applications, even outdoors. Item number: 7273610 GTIN: 4018098246961 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 3x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1575mm x 90mm x 105mm; Diameter: 90mm
