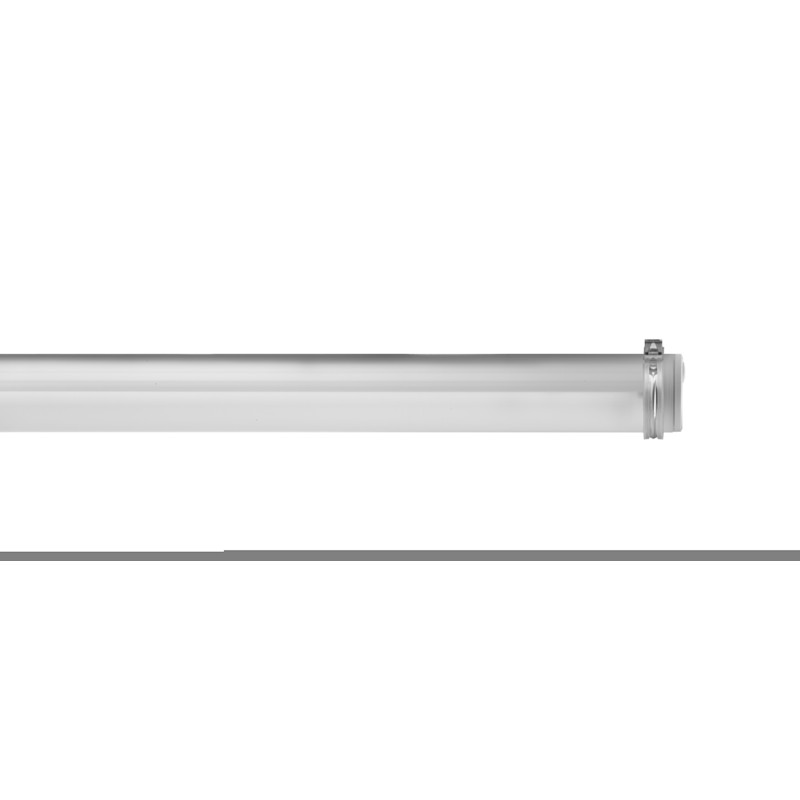

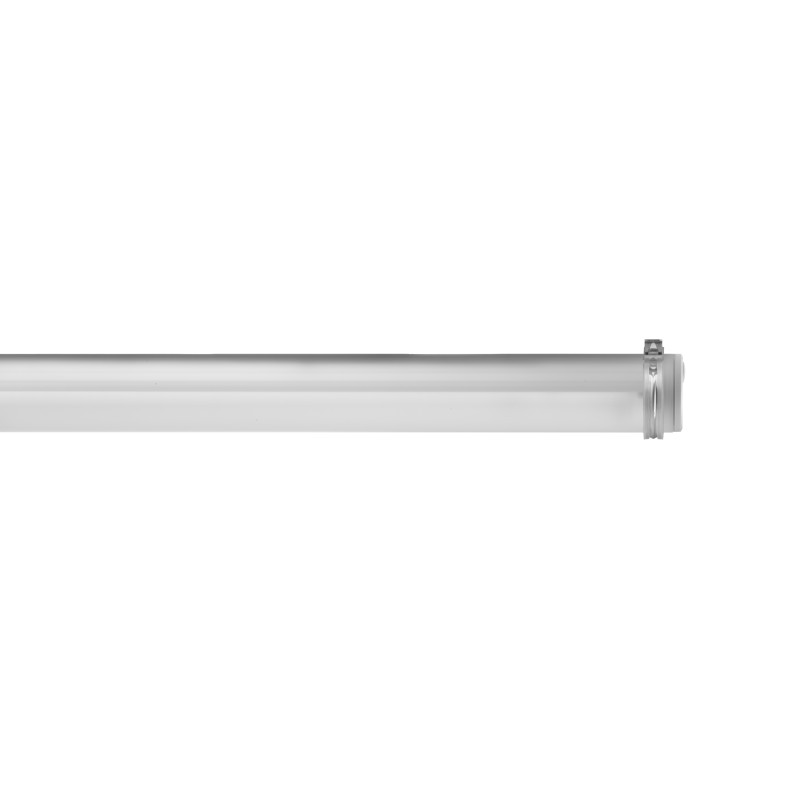

7283630x01 TUBIS N LED XLS C DM 1575mm PO 1x43W 125° 6700lm
TUBIS N LED XLS C DM 1575mm PO 1x43W 125° 6700lm, 4000K, class I, with TW 3x2,5mm²+2x1,5mm², Casambi Dali Master. LED round tube light with MID-Power LEDs and integrated converter, impact-resistant PRACHTOPAL housing (Ø 90mm), 360° rotatable, acid and alkali-resistant, versatile mounting for demanding applications, even outdoors.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- high-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
technical data
| Ausstrahlwinkel | 125 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1575 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Schlagfestigkeit | IK09 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 3x2.5+2x1.5 (DALI) |
| Outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1575 x 90 x 105 mm |
| Dimmable/Controllable | Casambi |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | with limitation |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 6700 lm |
| Leistung | 43 W |
| Lichtausbeute | 156 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 22.5 / 25.0 |
| Lebensdauer L70B50 (@Ta 25°C) | 231103 h |
| Lebensdauer L80B50 (@Ta 25°C) | 146191 h |
| Lebensdauer L90B50 (@Ta 25°C) | 71294 h |
| Lebensdauer L70B10 (@Ta 25°C) | 200343 h |
| Lebensdauer L80B10 (@Ta 25°C) | 126317 h |
| Lebensdauer L90B10 (@Ta 25°C) | 61022 h |
| Lebensdauer L70B50 (@Ta max) | 214342 h |
| Lebensdauer L80B50 (@Ta max) | 134588 h |
| Lebensdauer L90B50 (@Ta max) | 64398 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Zertifizierungszeichen | HACCP IFS |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 24 |
| Leitungsschutz C16A | 40 |
| emergency lighting suitability | Yes |
| Anzahl Slaves Leuchten | 24 |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Food-certified Round tube luminaire TUBIS N LED XLS C DM 1575mm PO 1x43W 125° 6700lm 4000K, class I, with TW 3x2,5mm²+2x1,5mm², Casambi Dali Master. LED round tube light with MID-Power LEDs and integrated converter, impact-resistant PRACHTOPAL housing (Ø 90mm), 360° rotatable, acid and alkali-resistant, versatile mounting for demanding applications, even outdoors. Item number: 7283630x01 GTIN: 4018098330325 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 3x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1575mm x 90mm x 105mm; Diameter: 90mm
