7a032455 TUBIS LED INDUSTRY 1550mm PO 1x71W 100° 10500lm

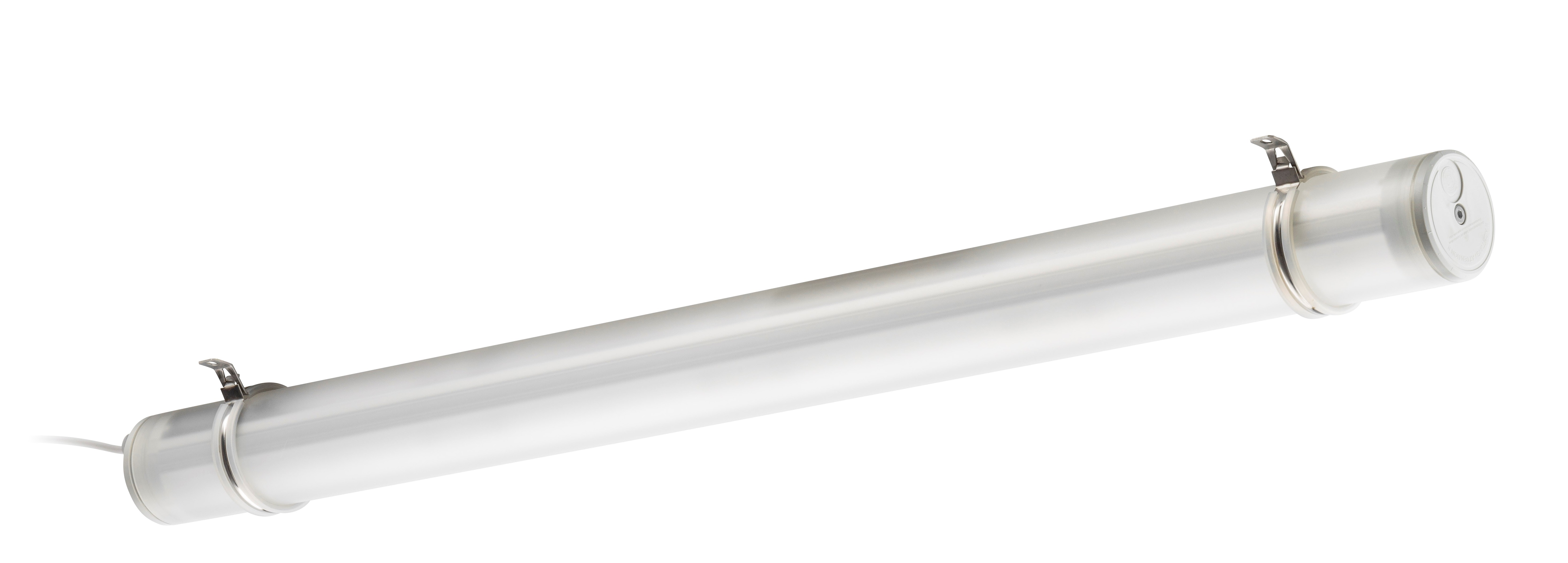

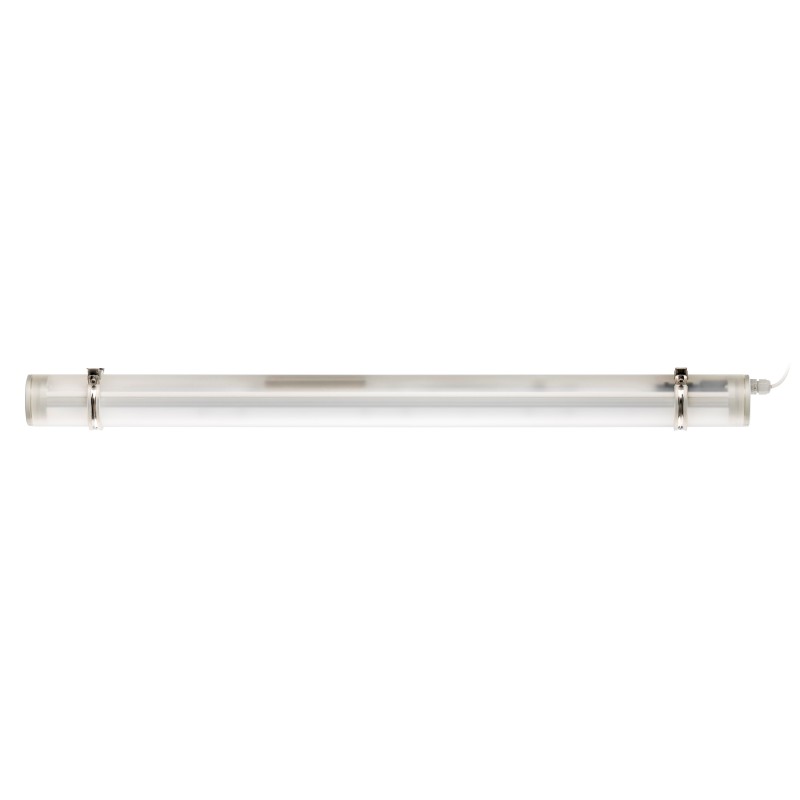

TUBIS LED INDUSTRY 1550mm PO 1x71W 100° 10500lm, 4000K, class I, without TW. Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- High-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali-resistant
- 360°° rotatable light
- IFS-certified
- Use of industrial components: high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
technical data
| Dimensions (L x W x H) | 1550 x 90 x 105 mm |
|---|---|
| Luminous flux | 10500 lm |
| Performance | 71 W |
| Luminous efficacy | 148 lm/W |
| Color temperature | 4000 K |
| Beam angle | 100 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Unprotected outdoor area in direct proximity to the building with cable entry from below or from the side |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1550 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.9 / 25.4 |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK09 |
| Protection class | SK I |
| Temperature range | -30 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 160385 h |
| Lifetime L80B50 (@Ta 25°C) | 101431 h |
| Lifetime L90B50 (@Ta 25°C) | 49430 h |
| Lifetime L70B10 (@Ta 25°C) | 127357 h |
| Lifetime L80B10 (@Ta 25°C) | 80882 h |
| Lifetime L90B10 (@Ta 25°C) | 39861 h |
| Lifetime L70B50 (@Ta max) | 134108 h |
| Lifetime L80B50 (@Ta max) | 84989 h |
| Lifetime L90B50 (@Ta max) | 41455 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 30 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7a032455NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Certification mark | ENEC HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Durable Round tube luminaire TUBIS LED INDUSTRY 1550mm PO 1x71W 100° 10500lm 4000K, class I, without TW. Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options. Item number: 7a032455 GTIN: 4018098286325 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 1550mm x 90mm x 105mm; Diameter: 90mm
