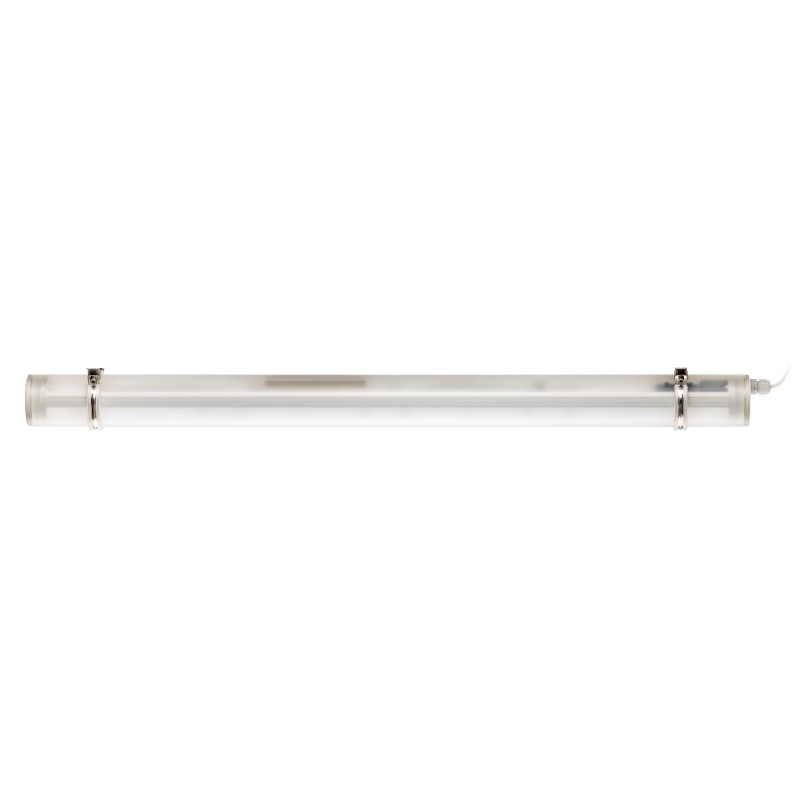

7a431429x00 TUBIS LED INDUSTRY XLS C 1295mm PO 1x26W 125° 4600lm

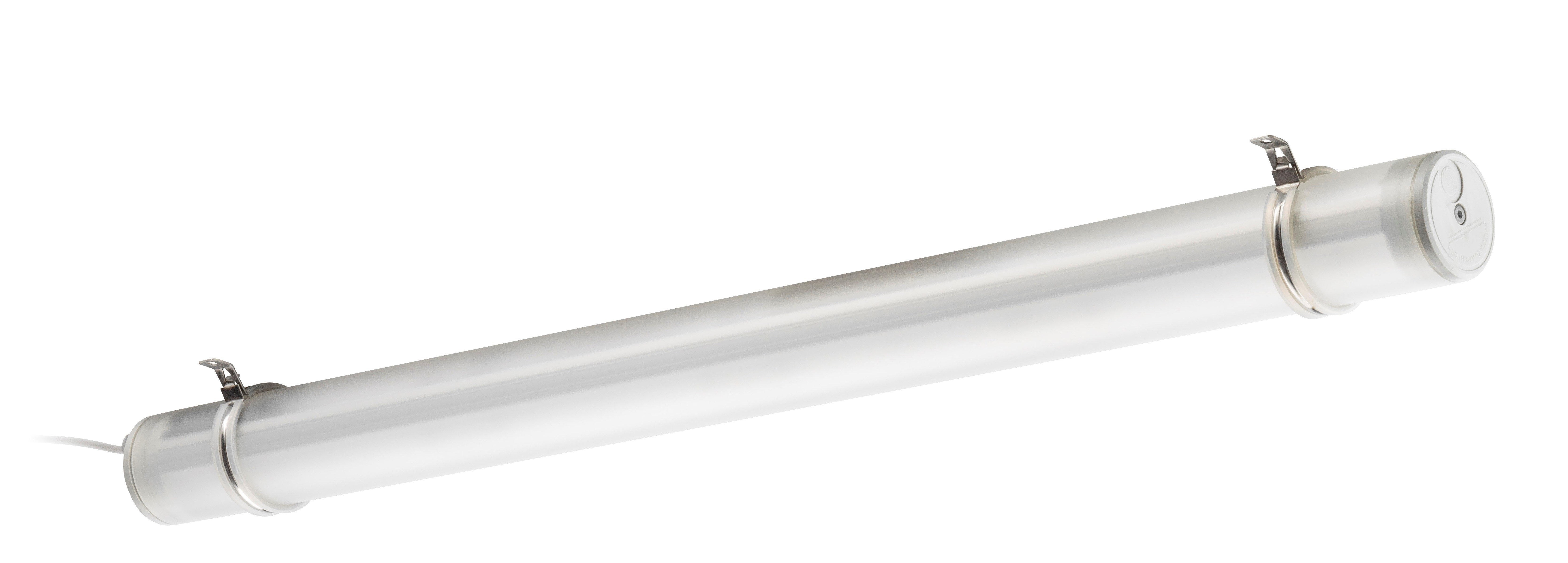

TUBIS LED INDUSTRY XLS C 1295mm PO 1x26W 125° 4600lm, 4000K, class I, with TW 3x2,5mm², Casambi. Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options.
- Configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- High-pressure waterproof and UV-stable for unprotected outdoor areas in: IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
- industrial components: high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
- with integrated Casambi module for wireless control via Bluetooth in the meshnetwork
technical data
| Ausstrahlwinkel | 125 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1295 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Schlagfestigkeit | IK09 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | 3x2.5 |
| Outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1295 x 90 x 105 mm |
| Dimmable/Controllable | Casambi |
| Temperaturbereich | -20 … +40 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 40 °C |
| Lichtstrom | 4600 lm |
| Leistung | 26 W |
| Lichtausbeute | 177 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 22.5 / 24.9 |
| Lebensdauer L70B50 (@Ta 25°C) | 245604 h |
| Lebensdauer L80B50 (@Ta 25°C) | 154282 h |
| Lebensdauer L90B50 (@Ta 25°C) | 73730 h |
| Lebensdauer L70B10 (@Ta 25°C) | 197535 h |
| Lebensdauer L80B10 (@Ta 25°C) | 124487 h |
| Lebensdauer L90B10 (@Ta 25°C) | 59851 h |
| Lebensdauer L70B50 (@Ta max) | 245604 h |
| Lebensdauer L80B50 (@Ta max) | 154282 h |
| Lebensdauer L90B50 (@Ta max) | 73730 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Zertifizierungszeichen | HACCP IFS |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 21 |
| Leitungsschutz C16A | 35 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Durable Round tube luminaire TUBIS LED INDUSTRY XLS C 1295mm PO 1x26W 125° 4600lm 4000K, class I, with TW 3x2,5mm², Casambi. Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options. Item number: 7a431429x00 GTIN: 4018098329237 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 3x2.5; Dimensions: LxWxH: 1295mm x 90mm x 105mm; Diameter: 90mm
