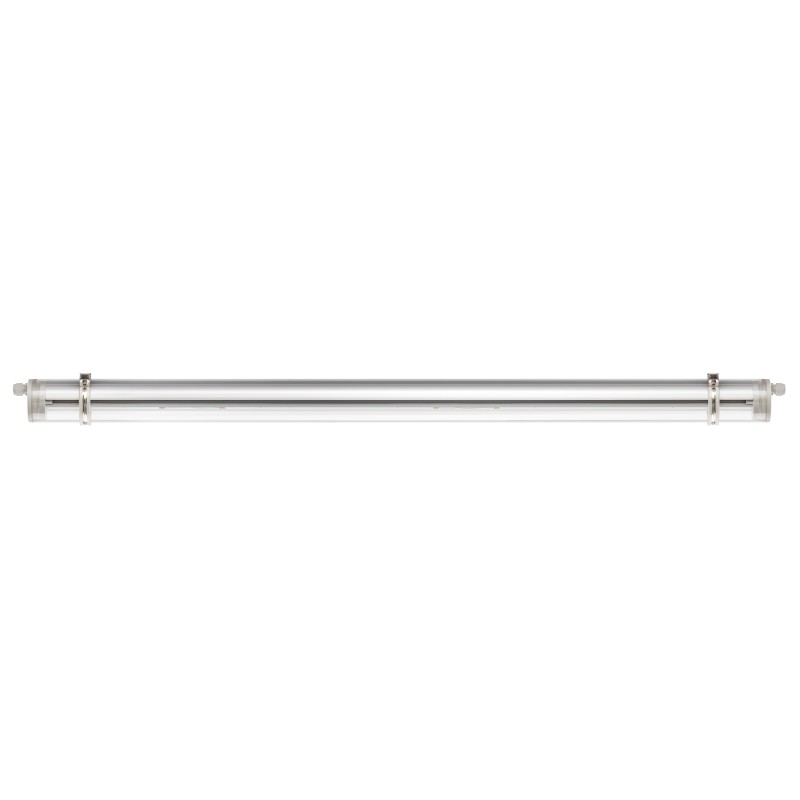

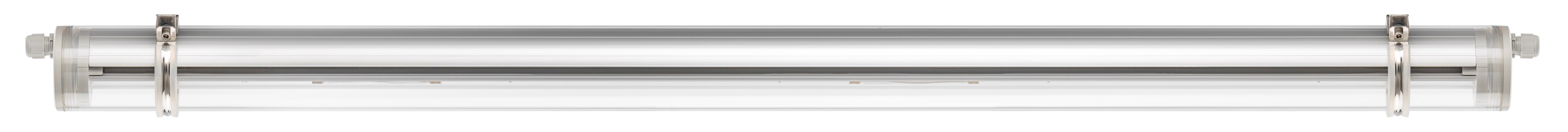

7a841454 TUBIS LED INDUSTRY 1295mm PC 1x58W 135° 8400lm

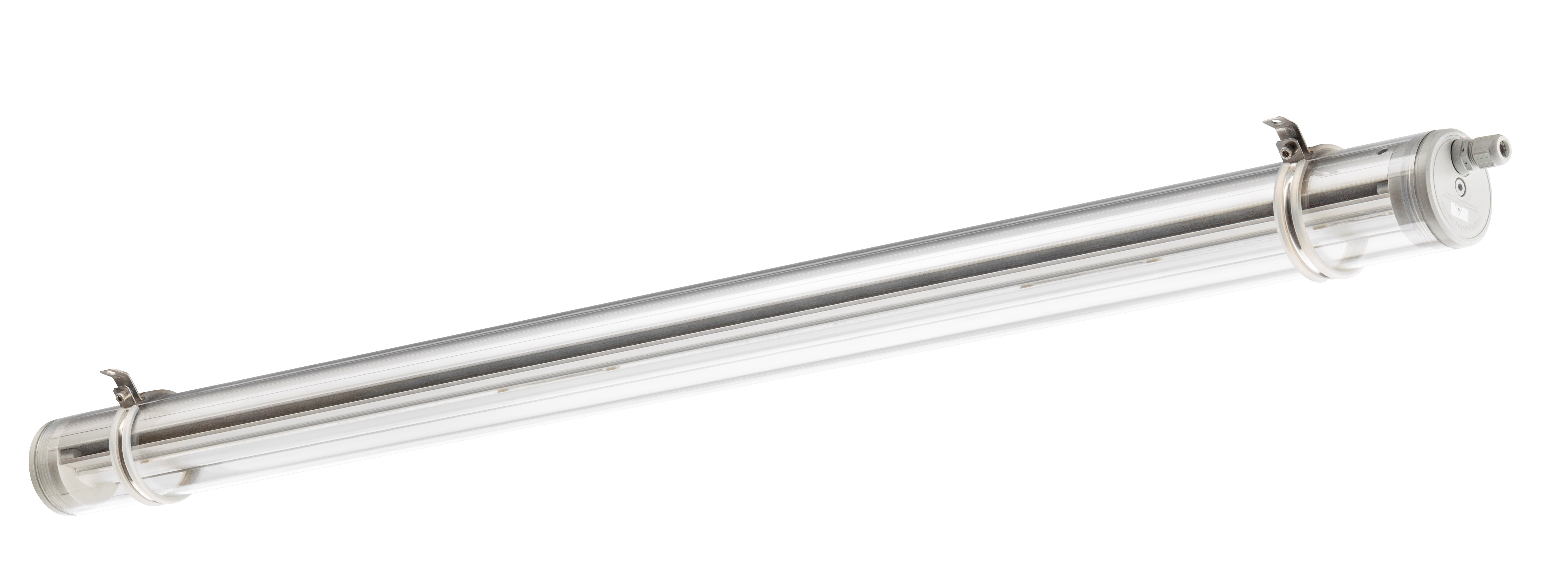

TUBIS LED INDUSTRY 1295mm PC 1x58W 135° 8400lm, 4000K, class I, with TW 5x2,5mm². Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options.
- configurable tube luminaire: housing, length, DV, color temperature, Dali, connection cable, etc.
- High-pressure watertight and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
- Use of industrial components: high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
technical data
| Dimensions (L x W x H) | 1295 x 90 x 105 mm |
|---|---|
| Luminous flux | 8400 lm |
| Performance | 58 W |
| Luminous efficacy | 145 lm/W |
| Color temperature | 4000 K |
| Beam angle | 135 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2,5 |
| Outdoor area | Unprotected outdoor area in direct proximity to the building with cable entry from below or from the side |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1295 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.7 / 27.8 |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK10 |
| Protection class | SK I |
| Temperature range | -30 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 160385 h |
| Lifetime L80B50 (@Ta 25°C) | 101431 h |
| Lifetime L90B50 (@Ta 25°C) | 49430 h |
| Lifetime L70B10 (@Ta 25°C) | 127357 h |
| Lifetime L80B10 (@Ta 25°C) | 80882 h |
| Lifetime L90B10 (@Ta 25°C) | 39861 h |
| Lifetime L70B50 (@Ta max) | 134108 h |
| Lifetime L80B50 (@Ta max) | 84989 h |
| Lifetime L90B50 (@Ta max) | 41455 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 30 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7a841454NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Certification mark | ENEC HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Durable Round tube luminaire TUBIS LED INDUSTRY 1295mm PC 1x58W 135° 8400lm 4000K, class I, with TW 5x2,5mm². Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options. Item number: 7a841454 GTIN: 4018098287278 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of PC-Polycarbonate clear; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1295mm x 90mm x 105mm; Diameter: 90mm
