7a841455 TUBIS LED INDUSTRY 1575mm PC 1x64W 135° 10500lm

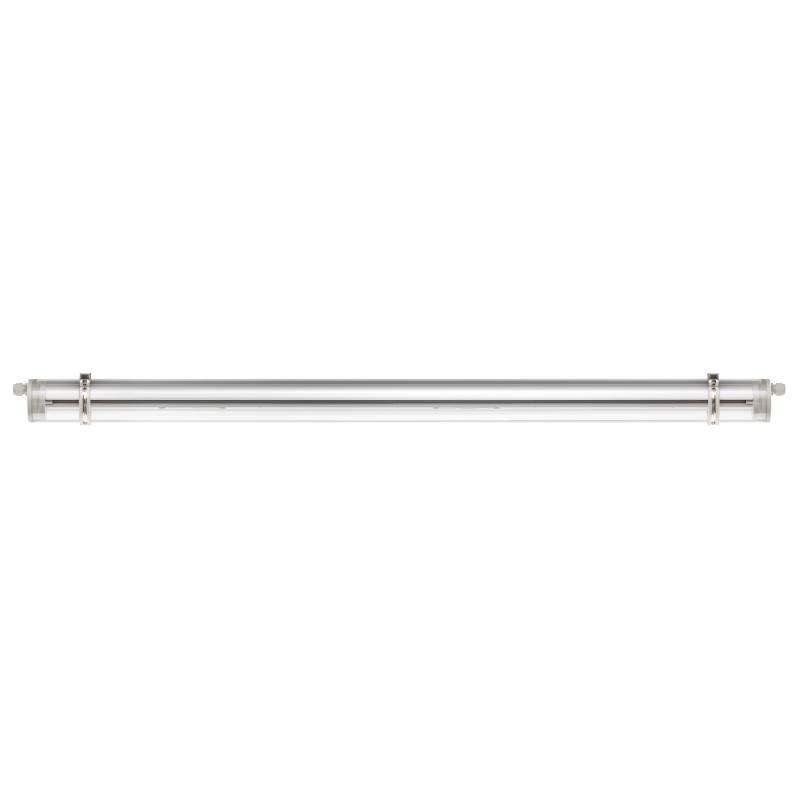

TUBIS LED INDUSTRY 1575mm PC 1x64W 135° 10500lm, 4000K, class I, with TW 5x2,5mm². Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- High-pressure waterproof and UV-stable for unprotected outdoor areas in IP67, IP68, IPX9K
- Acid and alkali-resistant
- 360°° rotatable light
- IFS-certified
- Use of industrial components: high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
technical data
| Beam angle | 135 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 7a841455NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1575 mm |
| multi-lumen | Nein |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK10 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| through-wiring | 5x2.5 |
| outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1575 x 90 x 105 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -30 … +50 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Lichtstrom | 10500 lm |
| Leistung | 64 W |
| light output | 164 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.7 / 27.8 |
| Lifetime L70B50 (@Ta 25°C) | 160385 h |
| Service life L80B50 (@Ta 25°C) | 101431 h |
| Lifetime L90B50 (@Ta 25°C) | 49430 h |
| Lifetime L70B10 (@Ta 25°C) | 127357 h |
| Lifetime L80B10 (@Ta 25°C) | 80882 h |
| Lifetime L90B10 (@Ta 25°C) | 39861 h |
| Lifetime L70B50 (@Ta max) | 134108 h |
| Lifetime L80B50 (@Ta max) | 84989 h |
| Lifetime L90B50 (@Ta max) | 41455 h |
| Circuit breaker B16A | 18 Leuchten |
| Circuit breaker C16A | 30 Leuchten |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | B |
Tender text
Durable Round tube luminaire TUBIS LED INDUSTRY 1575mm PC 1x64W 135° 10500lm 4000K, class I, with TW 5x2,5mm². Robust round tube luminaire (Ø 90 mm) for demanding industrial environments: impact-resistant, water pressure-tight (IP66/IP68/IPX9K) and versatile mounting options. Item number: 7a841455 GTIN: 4018098287315 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of PC-Polycarbonate clear; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1575mm x 90mm x 105mm; Diameter: 90mm
