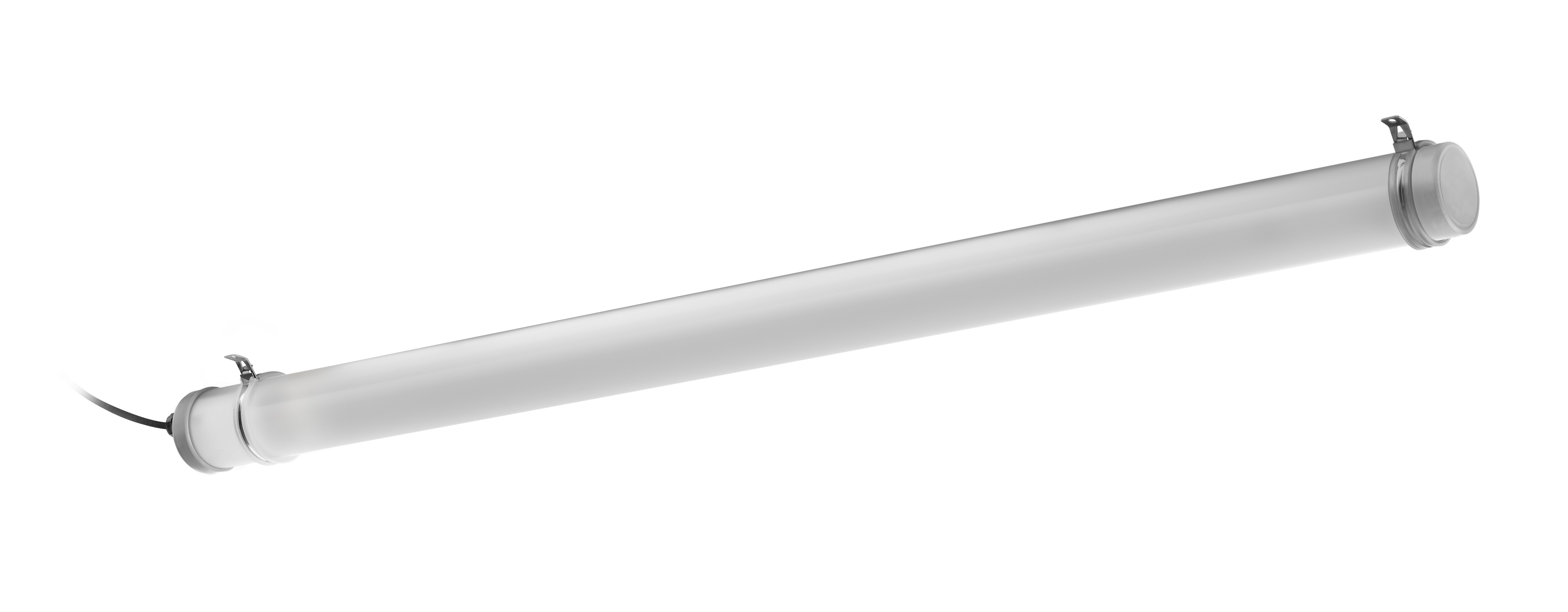

7c032340 TUBIS LED RESISTANT DALI 1550mm PO 1x48W 100° 7900lm
TUBIS LED RESISTANT DALI 1550mm PO 1x48W 100° 7900lm, 4000K, class I, without TW, open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- high-pressure watertight and UV-stable for unprotected outdoor areas in: IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
- extremely robust industrial components and bonded/welded housing
- high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
- resistant to aggressive gases also suitable for electroplating or for swimming pools
technical data
| Dimensions (L x W x H) | 1550 x 92 x 105 mm |
|---|---|
| Luminous flux | 7900 lm |
| Performance | 48 W |
| Luminous efficacy | 165 lm/W |
| Color temperature | 4000 K |
| Beam angle | 100 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Unprotected outdoor area in direct proximity to the building with cable entry from below or from the side |
| Vandalism protection | No |
| Animal husbandry | without restriction |
| Multi-Lumen | No |
| Length | 1550 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.9 / 24.4 |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -30 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Lifetime L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 183870 h |
| Lifetime L80B50 (@Ta max) | 115286 h |
| Lifetime L90B50 (@Ta max) | 54955 h |
| Line protection B16A | 24 luminaires |
| Line protection C16A | 40 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | not interchangeable |
| Interchangeability of light source | not interchangeable |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Certification mark | HACCP IFS |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Damage gas resistant Round tube luminaire TUBIS LED RESISTANT DALI 1550mm PO 1x48W 100° 7900lm 4000K, class I, without TW, open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use. Item number: 7c032340 GTIN: 4018098378204 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: without; Dimensions: LxWxH: 1550mm x 92mm x 105mm; Diameter: 90mm
