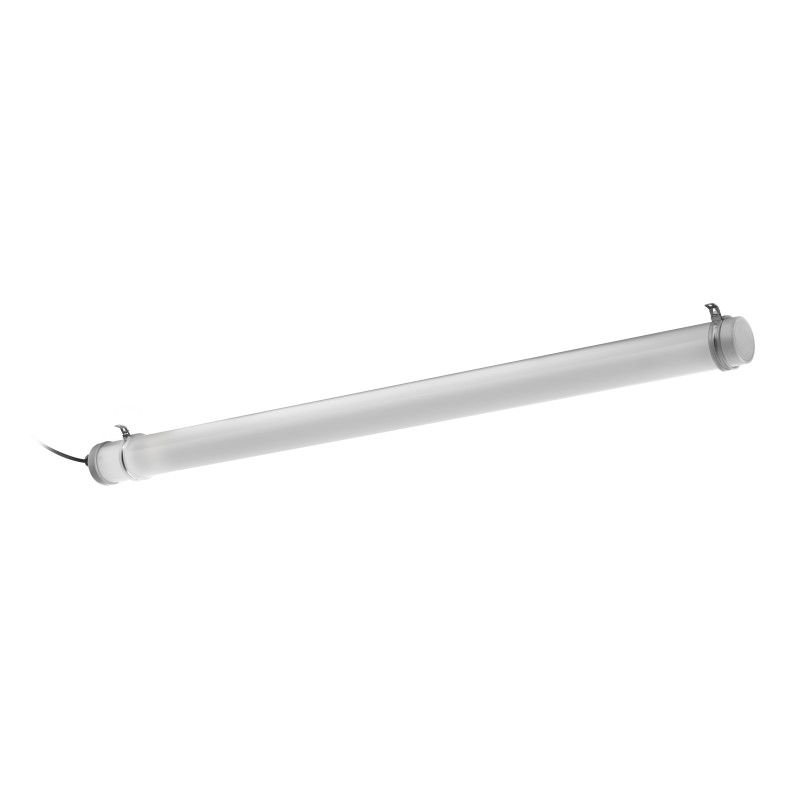

7c831855 TUBIS LED RESISTANT 1585mm PO 1x64W 125° 10500lm
TUBIS LED RESISTANT 1585mm PO 1x64W 125° 10500lm, 4000K, class II, with TW 5x2,5mm², open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- high-pressure watertight and UV-stable for unprotected outdoor areas in: IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
- extremely robust industrial components and bonded/welded housing
- high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
- resistant to aggressive gases also suitable for electroplating or for swimming pools
technical data
| Ausstrahlwinkel | 125 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1585 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | not exchangeable |
| Through-wiring | 5x2.5 |
| Outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class II |
| Abmessungen (L x B x H) | 1585 x 92 x 105 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -30 … +40 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | without limitation |
| Umgebungstemperatur (min) | -30 °C |
| Umgebungstemperatur (max) | 40 °C |
| Lichtstrom | 10500 lm |
| Leistung | 64 W 71 W |
| Lichtausbeute | 148 lm/W 164 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 24.6 / 27.0 |
| Lebensdauer L70B50 (@Ta 25°C) | 160385 h |
| Lebensdauer L80B50 (@Ta 25°C) | 101431 h |
| Lebensdauer L90B50 (@Ta 25°C) | 49430 h |
| Lebensdauer L70B10 (@Ta 25°C) | 127357 h |
| Lebensdauer L80B10 (@Ta 25°C) | 80882 h |
| Lebensdauer L90B10 (@Ta 25°C) | 39861 h |
| Lebensdauer L70B50 (@Ta max) | 145806 h |
| Lebensdauer L80B50 (@Ta max) | 91731 h |
| Lebensdauer L90B50 (@Ta max) | 44275 h |
| Stoßspannungsfestigkeit L/N-PE | 4.0 kV |
| Zertifizierungszeichen | HACCP IFS |
| Energieeffizienzklasse Lichtquelle | B C |
| Leitungsschutz B16A | 18 |
| Leitungsschutz C16A | 30 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Damage gas resistant Round tube luminaire TUBIS LED RESISTANT 1585mm PO 1x64W 125° 10500lm 4000K, class II, with TW 5x2,5mm², open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use. Item number: 7c831855 GTIN: 4018098372882 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1585mm x 92mm x 105mm; Diameter: 90mm
