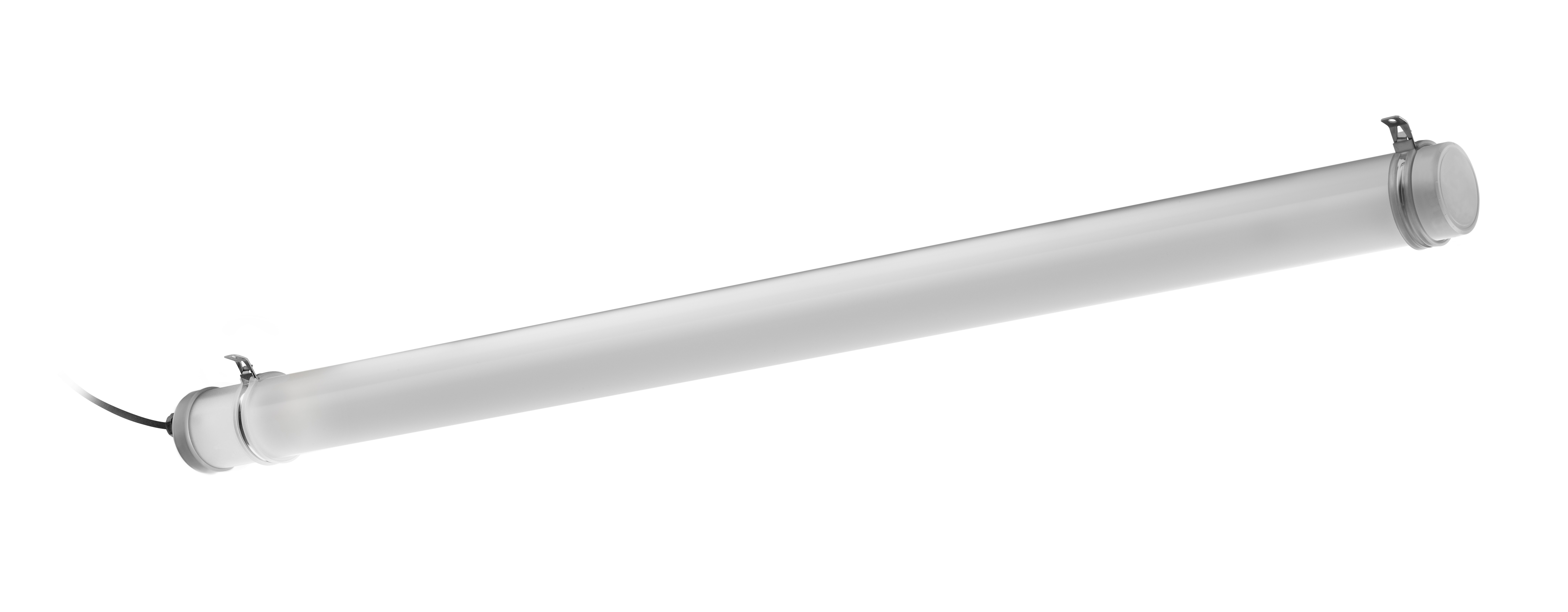

7c833340 TUBIS LED RESISTANT DALI 1585mm PO 1x48W 080° 7900lm
TUBIS LED RESISTANT DALI 1585mm PO 1x48W 080° 7900lm, 4000K, class I, with TW 5x2,5mm²+2x1,5mm², open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use.
- configurable tube light: housing, length, DV, color temperature, Dali, connection cable, etc.
- high-pressure watertight and UV-stable for unprotected outdoor areas in: IP67, IP68, IPX9K
- acid and alkali-resistant
- 360° degree rotatable light
- IFS-certified
- extremely robust industrial components and bonded/welded housing
- high transient resistance (up to 4 kV), higher luminous flux possible, for extreme temperatures
- resistant to aggressive gases also suitable for electroplating or for swimming pools
technical data
| Beam angle | 80 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | nein |
| REACH | Nein |
| market indicator | CE |
| length | 1585 mm |
| multi-lumen | Nein |
| IP protection class | IP65 IP66 IP67 IP68 (2m) IPX9 IPX9K |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | not exchangeable |
| through-wiring | 5x2.5+2x1.5 (DALI) |
| outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1585 x 92 x 105 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -30 … +50 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | without limitation |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Lichtstrom | 7900 lm |
| Leistung | 48 W |
| light output | 165 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.9 / 23.6 |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Service life L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 183870 h |
| Lifetime L80B50 (@Ta max) | 115286 h |
| Lifetime L90B50 (@Ta max) | 54955 h |
| Circuit breaker B16A | 24 Leuchten |
| Circuit breaker C16A | 40 Leuchten |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | C |
Tender text
Damage gas resistant Round tube luminaire TUBIS LED RESISTANT DALI 1585mm PO 1x48W 080° 7900lm 4000K, class I, with TW 5x2,5mm²+2x1,5mm², open connection cable. LED round tube luminaire for extreme applications such as electroplating, unprotected outdoor areas and gas-polluted environments: robust PRACHTOPAL housing, rotatable mounting and versatile use. Item number: 7c833340 GTIN: 4018098377559 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PRACHTOPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP68 (2m), IPX9, IPX9K, IP65, IP67; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1585mm x 92mm x 105mm; Diameter: 90mm
